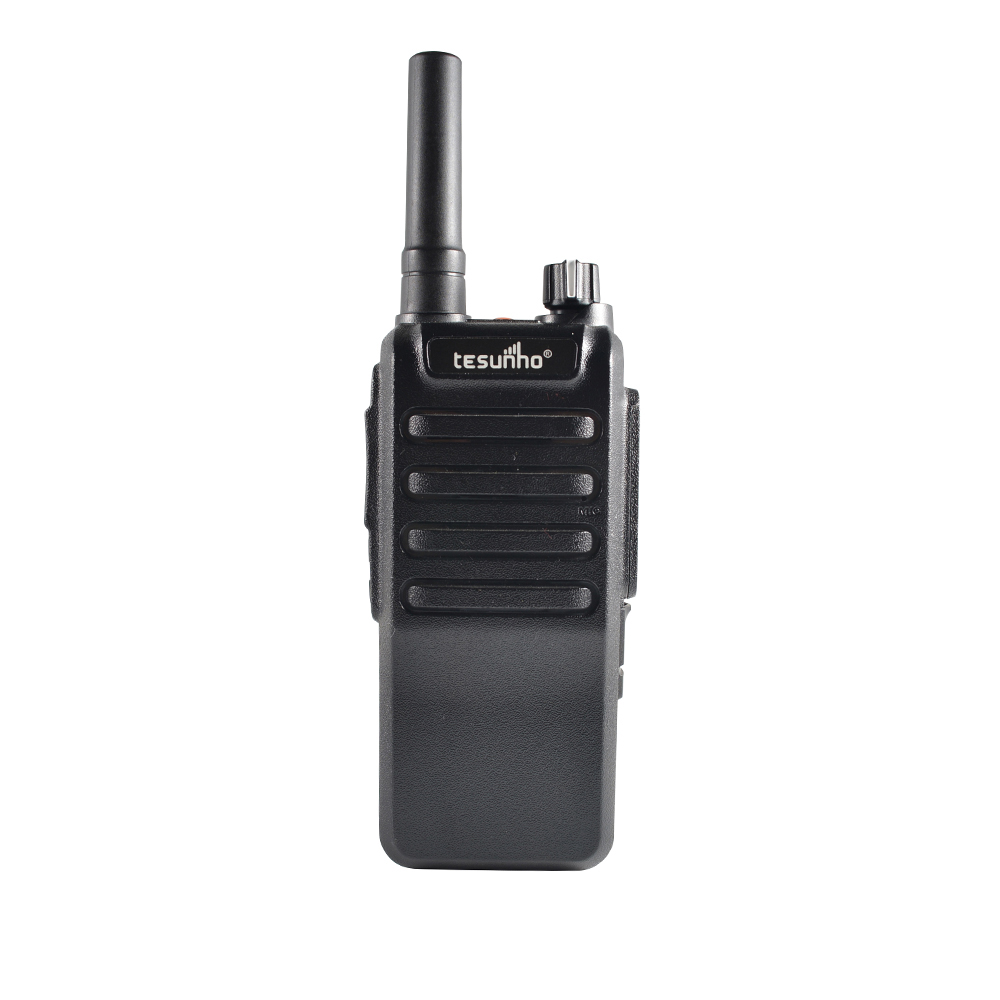

TH-518 LTE 200Miles Range SIM Card Poc Radio

TH-518 is a robust walky talky with standard American English prompt. Wifi function allows you enjoy the free calls.

Send Inquiry


Main Features:

1. SOS (Alarm button)

2. GPS Function

3. Support 3G/2G WIFI

4. Large Capacity (3.7V 5000mAh)

5. Quick charger – 3 hours fully charged

6. Support Group Call, P2P Call, Quick Call, Emergency Call

 SIM Card Poc Radio

Application:

Security, Construction, Industry, Commercial useIndoor Use.

Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, Logistic, TaxiTruck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

  200Miles Range Poc Radio

Specifications

Type

Parameter Item

Specification



Mechanical Properties

Model No.

TH-518

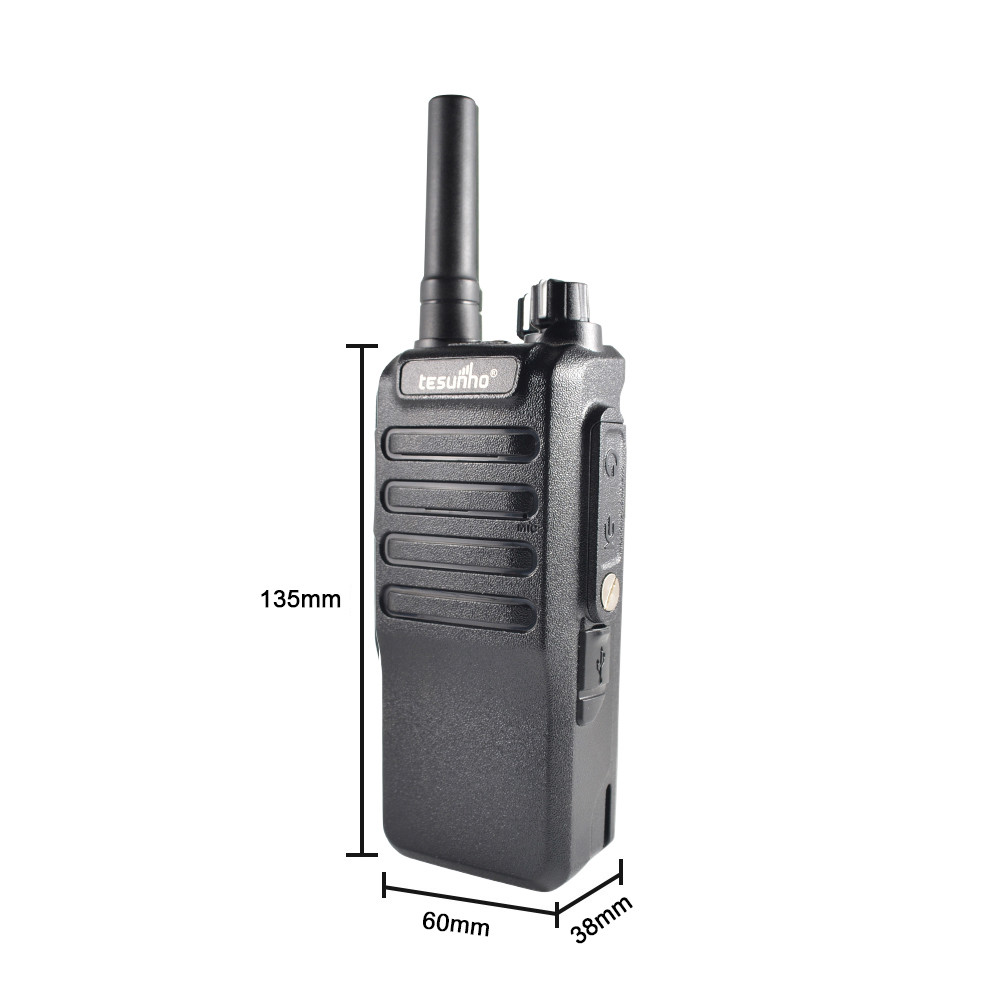

Dimension

38(H)×60(W)×135(L)mm

Weight

282g

Working Temperature

-30 to + 75





Basic Parameter

Working Voltage

3.3V~4.2V (Standard 3.8V)



Working Current

250mA @ WCDMA

220mA @ GSM

Peak Current

0.8A













RF Parameter



WCDMA

Band1: 2100MHz   Band2: 1900MHz

                 OR

Band5:  850MHz   Band8:  900MHz

GSM

GSM/GPRS : 900/1800 MHz/850/1900 MHz



Maximum

Output power

WCDMA: 24 +1/-3dBm (Power Class 3)

GSM850/900: 33±2dBm(Power Class 4)

GSM1800/1900: 30±2dBm(Power Class 1)



Receiving Sensitivity

WCDMA 900:-108 dBm;

WCDMA 2100:-109 dBm;

GSM850/900/1800/1900 : -106 dBm



GPS

GPS

GPS Positioning, A-GPS, 1.57542GHz;

Sensitivity

Catch -144dBm, Track -159dBm







Technology Standard





Data Speed Rate

GSM CS : UL 9.6kpbs / DL 9.6kpbs

GPRS : Multi-slot Class 10

EDGE : Multi-slot Class 12

WCDMA CS : UL 64kpbs / DL 384kpbs

WCDMA PS : UL 384kpbs / DL 384kpbs

Protocol

HSDPA / WCDMA / EDGE / GPRS / GSM



WIFI

WIFI

IEEE 802.11 b/g/n ,2.4G;

Maximum RF power

20dBm

Receiving Sensitivity

IEEE 802.11 g : -65dBm


Battery Capacity

3.63V 5200mAh


Body

Charging Port

Micro USB


Audio Output

0.8W


PoC OS

Android


GPS/APRS

GPS


SOS


Languages

English / Spanish


Certificate

CE


Wifi

WIFI

IEEE 802.11 b/g/n,2.4G

Maximum

RF Power

20dBm

Receiving

Sensitivity

IEEE 802.11 g: -65dBm


Secondary Development

 LTE Poc Radio

To see real product, please go to video link below:

 https://youtu.be/W6VGR_WydZw



Packaging & Shipping :

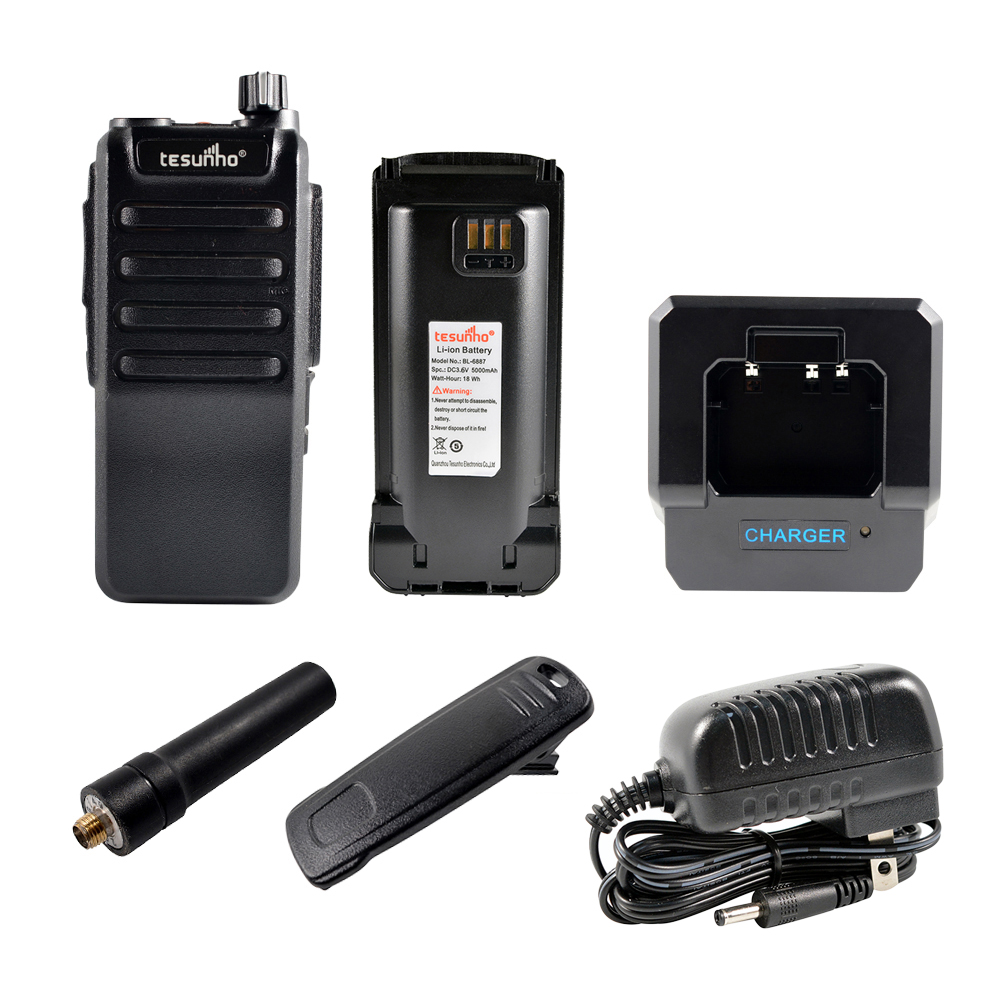

Standard Accessories:


Packing Details:

DIMENSION & WEIGHT

Item

One Unit

Standard Carton





Delivery Method



Size(cm)

Gross Weight(kg)

Quantity(pcs)



Size(cm)

Gross Weight(kg)



TH518



25.5*21.5*5.5



0.62



20



58*46*30



13.9



DHL/FedEx/TNT/EMS/By Air/By sea

Lead  Time

Item

Quantity(pcs)

Production   Lead Time



Walkie   talkie

1-50

1-3   days

20-200

2-5   days

200-500

2-10   days

500-1000

5-21   days




Standard Packing:package.jpg

Payment Method:

Trade Assurance/ Bank transfer/ Western Union/ MoneyGram/ Paypal/ L/C

Our Services:

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
