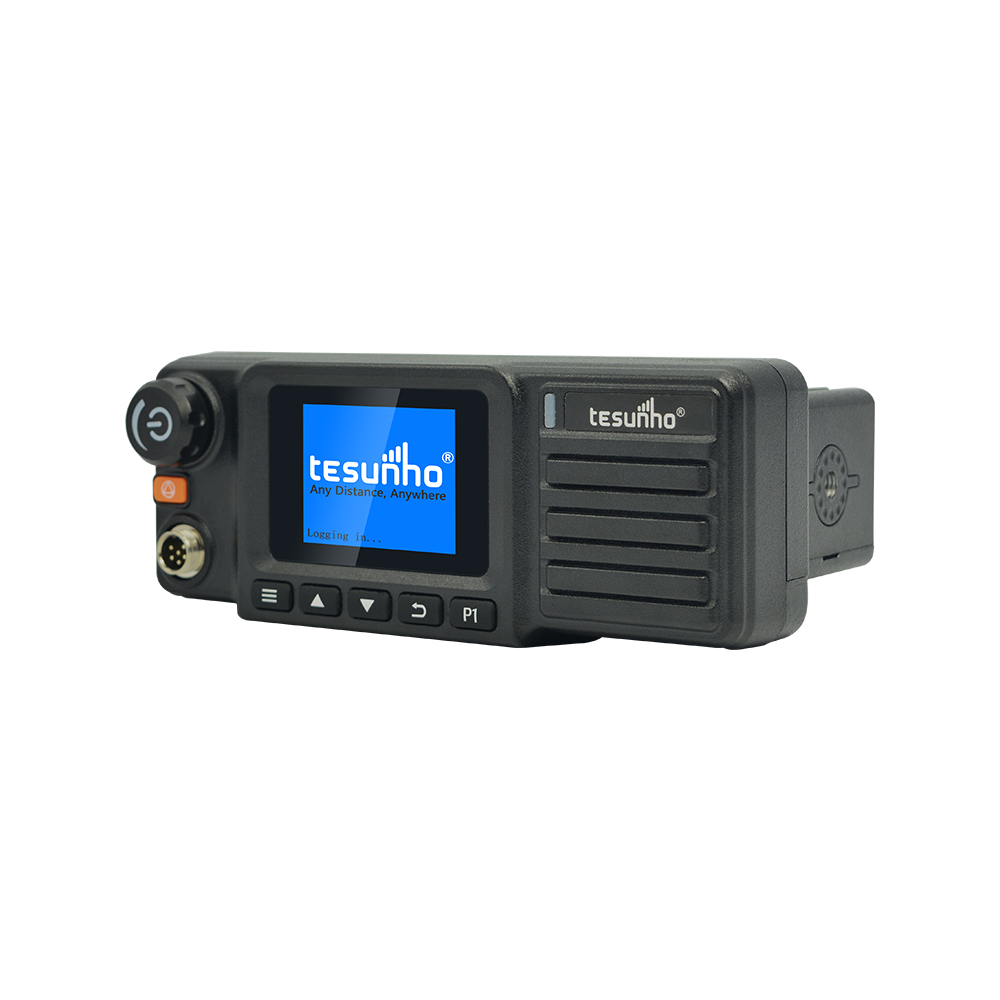

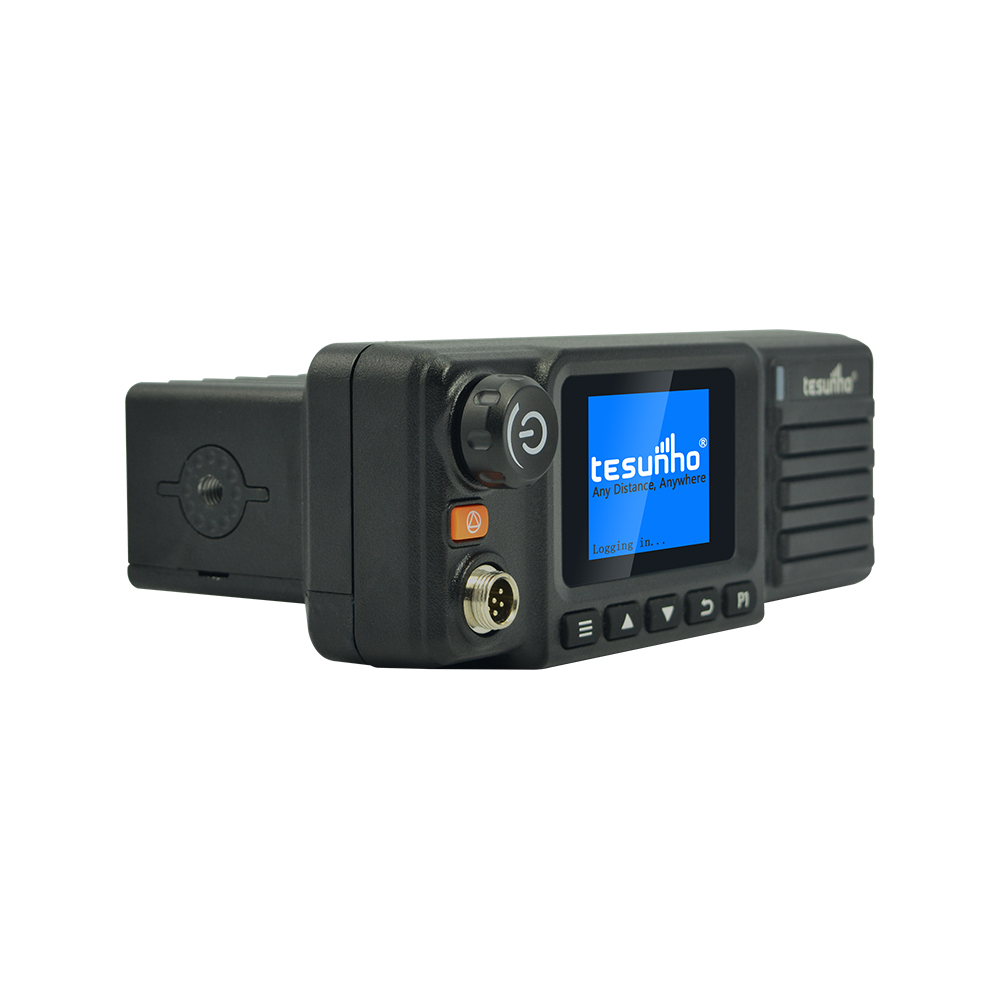

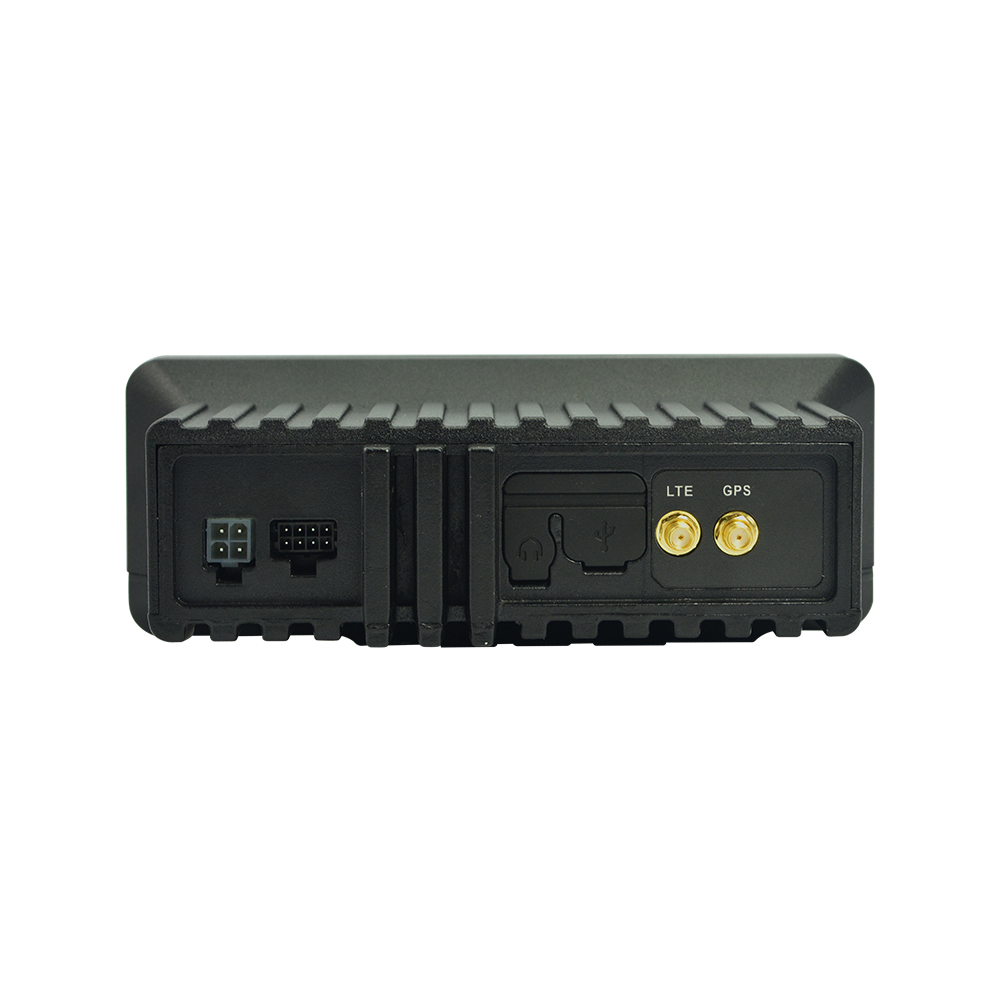

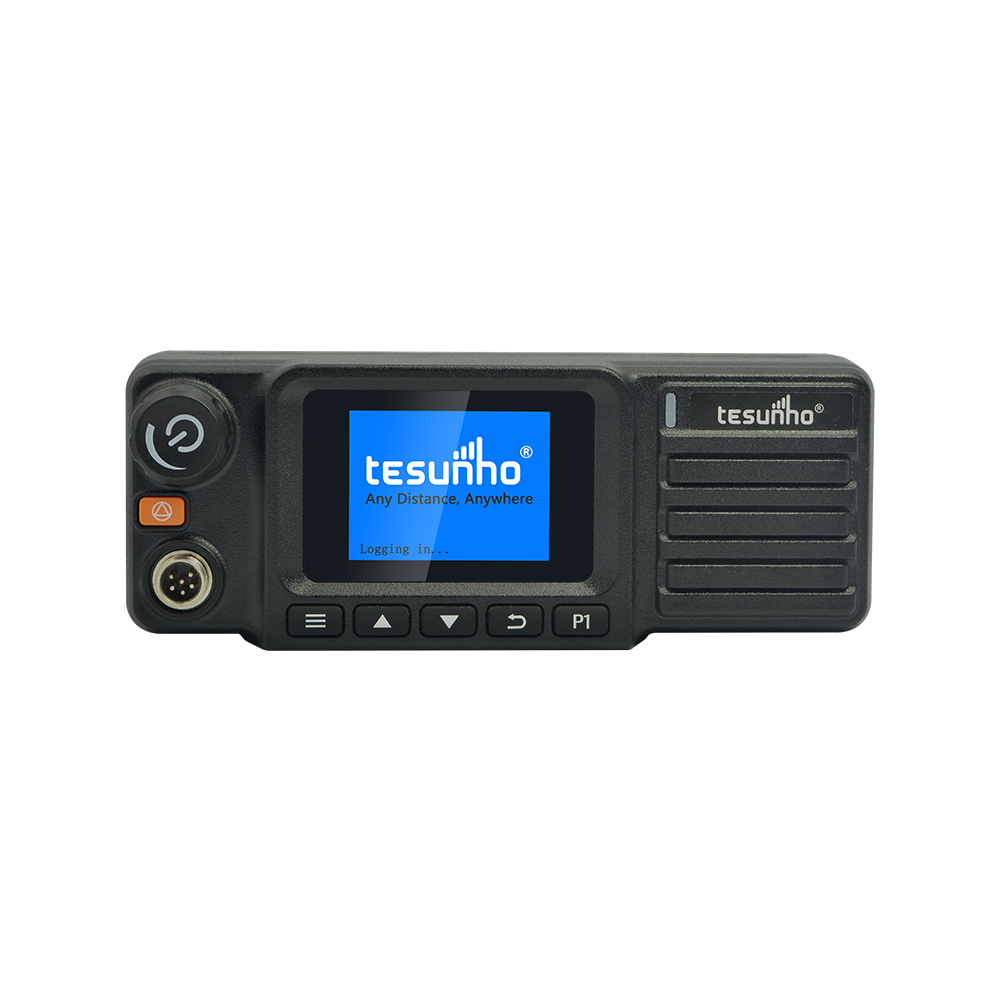

TM-990 FCC CE Certificate Mobile In-Vehicle Radios

TM-990 FCC CE Certificate Mobile In-Vehicle Radios

Send Inquiry


Main Features:

1.Wide verizon LCD
2.Protection to following situations:

over voltage, over current, overloading and thunderstrike

3.Screen flip function

4.Shortcut to switch group, user, and talking history

5.Loud audio and audio control lock function

6.Multimedia Speaker to ensure audio quality

7.Wide range of input voltage options: 12-28V

8.Can be a 5V 1A quick charger for mobile phone

9.8-pin secondary development jack available to other APPs like oil
   consumption

10.Maximum bracket rotate degree: 270 degree

 Mobile In-Vehicle Radios

Application:

Unique for: taxi/bus, transporting company and logistics
Popular for: security guard, railway, army, government, rescue, police and traveling

 FCC CE Certificate Radios

Specifications

Type

Parameter Item

Specification



Mechanical Properties

Model No.

TM-990

Dimension

72(H)×135 (W)×199(L)mm

Weight

882g

Working Temperature

-30 to + 75



Basic Parameter

Working Voltage

9V~24V(Standard 13.8V)



Working Current

500mA @ LTE

300mA @ WCDMA

220mA @ GSM

Peak Current

1A













RF Parameter

LTE FDD

(Have multiple versions of LTE Bands for different countries)

Band1: 2100MHz   Band3: 1800MHz

Band7: 2600MHz   Band8:  900MHz

Band20: 800MHz



WCDMA

Band1 : 2100MHz       Band2 : 1900MHz

OR

Band8:  900MHz       Band5:  850MHz

GSM

GSM/GPRS : 900/1800 MHz





Maximum

Output power

LTE: 23±2.7dBm(Power Class 3)

WCDMA: 24 +1/-3dBm (Power Class 3)

GSM850/900: 33±2dBm(Power Class 4)

GSM1800/1900: 30±2dBm(Power Class 1)



Receiving Sensitivity

WCDMA900: ≤ -108dBm;

WCDMA2100: ≤ -109dBm;

GSM 850/900/1800/1900 : ≤ -106dBm



GPS

GPS

GPS Positioning,1.57542GHz

Sensitivity

Catch -144dBm, Track -159dBm





Technology Standard





Data Speed Rate

GSM CS : UL 9.6 Kbps / DL 9.6 Kbps

GPRS: Multi-slot class 10

EDGE: Multi-slot class 12

WCDMA CS : UL 64 Kbps / DL 64 Kbps

WCDMA PS : UL 384 Kbps / DL 384 Kbps

Protocol

HSDPA / WCDMA / EDGE / GPRS / GSM


Audio Output

3W


PoC OS

Linux


Phone Call

Optional


Dispatcher Message


GPS/APRS

GPS&APRS


SOS


Keypad

Optional


LCD

2.4 TFT


Rotate Display


PTT Records


Monitor


Volume Lock


Languages

English / Spanish


Certificate

CE/FCC/IC


Bluetooth

Optional

Bluetooth

Bluetooth® V4.2

Specification BLE

Maximum RF Power

Class 1 10dBm

Receiving

Sensitivity

-85dBm @0.1% BER


Noise Suppression

Optional


Dual SIM


Secondary Development


To see real product, please go to video link below:

https://youtu.be/xWg-navCzNY


Packaging & Shipping :

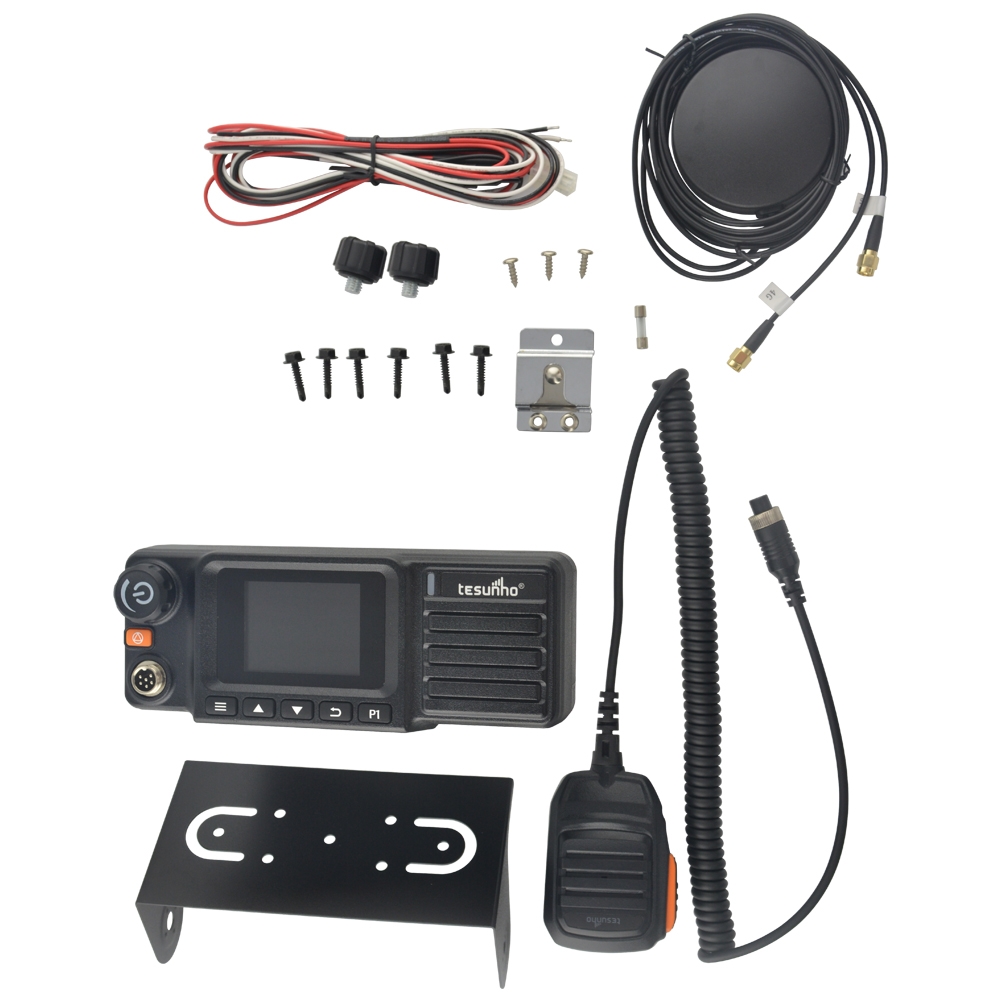

Standard Accessories:

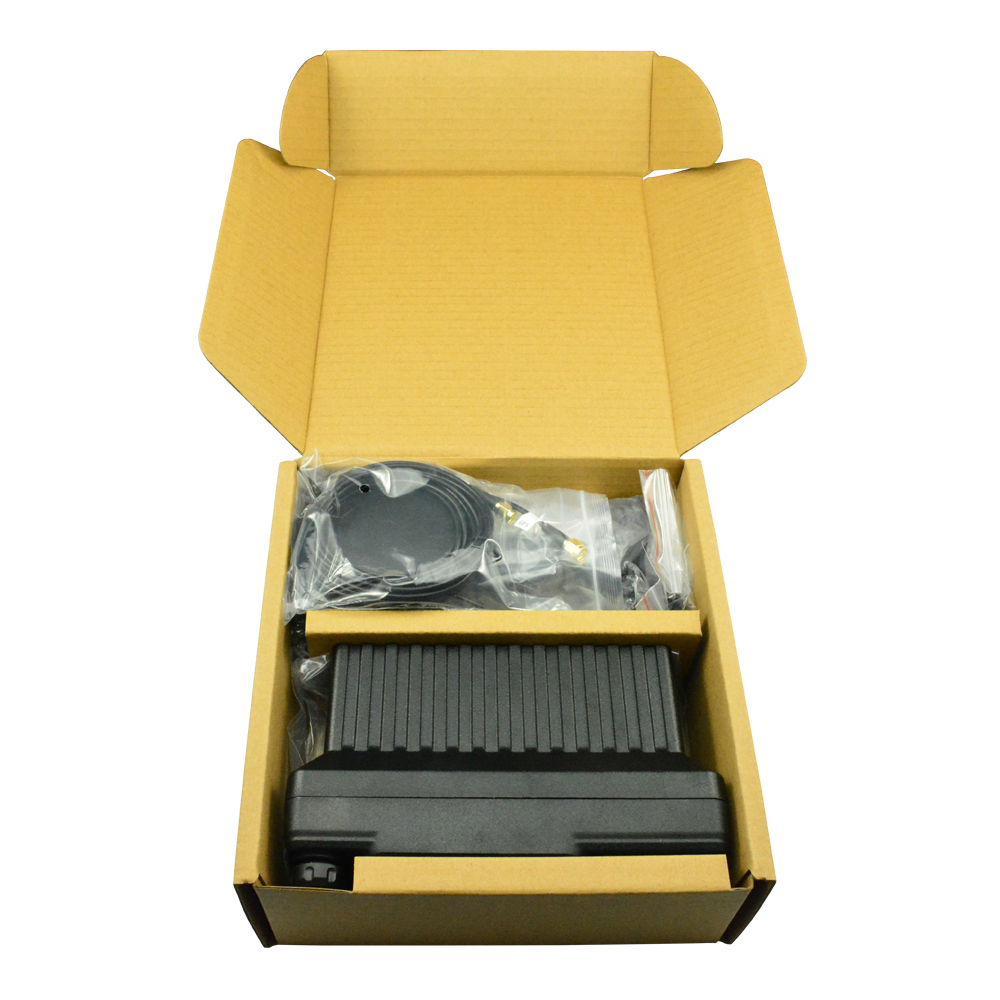

Packing Details:

DIMENSION & WEIGHT

Item

One Unit

Standard Carton





Delivery Method



Size(cm)

Gross Weight(kg)

Quantity(pcs)



Size(cm)

Gross Weight(kg)



TM990



22.5*22*8.0



1.68



10



48*42*24



17.68



DHL/FedEx/TNT/EMS/By Air/By sea

Lead  Time

Item

Quantity(pcs)

Production   Lead Time



Walkie   talkie

1-50

1-3   days

20-200

2-5   days

200-500

2-10   days

500-1000

5-21   days




Standard Packing:package.jpg

Payment Method:

Trade Assurance/ Bank transfer/ Western Union/ MoneyGram/ Paypal/ L/C

Our Services:

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
