TH-682 4G Security Two Way Radios Manufacturer

TH-682 4G Security Two Way Radios Manufacturer

1: High End Product
2: With bright screen
3: Monitor Groups
4: Playback Voice Records
5: 6 Shortcut Key Programable
6: GPS Tracking / APRS / SOS Function
7: Optional: NFC / RFID / Bluetooth
...

Send Inquiry


Main Features:

1. SOS & APRS(Emergency button)

2. GPS Function

3. Display the users/calling/last caller information

4. Can receive dispatcher message

5. Support 4G/3G/2G network

6. Support Group Call, P2P Call, Quick Call, Emergency Call

7. Large Capacity (3.7V 5000mAh)

8. Quick charger – 3 hours fully charged

Two Way Radios

Application:

 Security, Airport, Railway, PoliceRescue

Commercial use Construction, Industry, Army, Government, Outdoor adventure, LogisticsTaxiTruckCamping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.

Two Way Radios Manufacturer

Specifications

Type

Parameter Item

Specification



Mechanical Properties

Model No.

TH-682

Dimension

40(H)×60(W)×135(L)mm

Weight

299g

Working Temperature

-30 to + 75





Basic Parameter

Working Voltage

3.3V~4.2V (Standard 3.8V)



Working Current

[email protected]

3[email protected]

[email protected]

Peak Current

2A













RF Parameter



LTE FDD

E

Band1: 2100MHz   Band31800MHz

Band72600MHz   Band8900MHz

Band20: 800MHz

WCDMA

Band1 : 2100MHz  OR  Band8 : 900MHz

GSM

GSM/GPRS : 900/1800 MHz

Maximum

Output power

LTE: 23±2.7dBm(Power Class 3)

WCDMA: 24 +1/-3dBm (Power Class 3)

GSM850/900: 33±2dBm(Power Class 4)

GSM1800/1900: 30±2dBm(Power Class 1)



Receiving Sensitivity

LTE FDD≤ -100dBm;

WCDMA900: ≤ -108dBm;

WCDMA2100: ≤ -109dBm;

GPS

GPS

GPS Positioning,1.57542GHz

Sensitivity

Catch -144dBm, Track -159dBm



Technology Standard

Data Speed Rate

LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps

WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps



Protocol

Support embedded TCP&UDP Protocols;

Support Protocols PAP and CHAP used for PPP conncetion;

3GPP TS 27.005,27.007


Battery Capacity

3.63V 5200mAh


Body Charging Port

Micro USB


Audio Output

0.8W


PoC OS

Linux


Phone Call


Dispatcher Message


GPS/APRS

GPS&APRS


SOS


Keypad


LCD

1.77 TFT


PTT Records


Monitor


Languages

English / Spanish


Certificate

CE/FCC/IC






Bluetooth

(Optional)

Bluetooth

Bluetooth® V4.2

Specification BLE

Maximum RF Power

Class 1 10dBm

Receiving Sensitivity

-85dBm @0.1% BER






NFC/RFID

(Optional)

Protocol

ISO14443

Supported Tag

MIFARE(MF0/MF1(S50/S70)

/MF2/MF3)/NTAG

Read

Distance

1cm (Depending on the Tag)

Working Current

-200mA


Secondary Development

Security Two Way Radios

To see real product, please go to video link below:

 https://youtu.be/F91g5CGQs9Y



Packaging & Shipping :

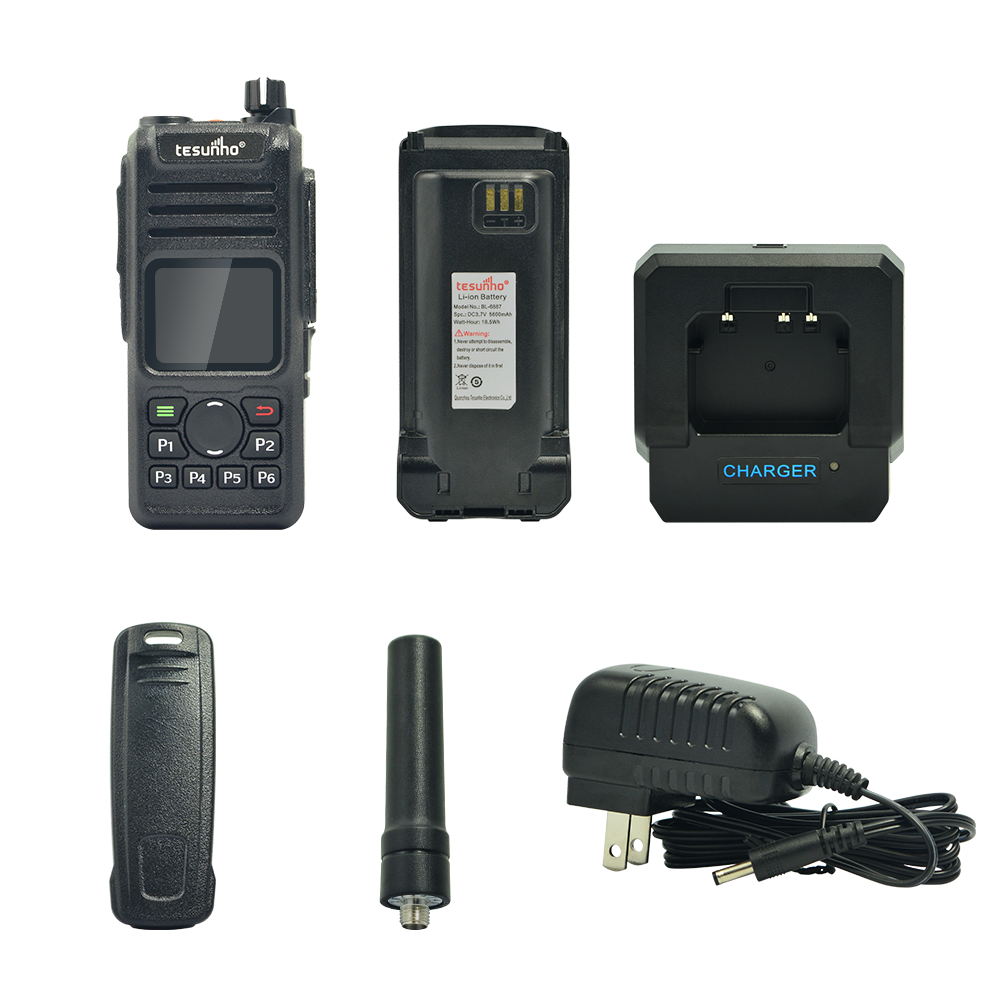

Standard Accessories:


Packing Details:

DIMENSION & WEIGHT

Item

One Unit

Standard Carton





Delivery Method



Size(cm)

Gross Weight(kg)

Quantity(pcs)



Size(cm)

Gross Weight(kg)



TH682



25.5*21.5*5.5



0.64



20



58*46*30



13.9



DHL/FedEx/TNT/EMS/By Air/By sea

Lead  Time

Item

Quantity(pcs)

Production   Lead Time



Walkie   talkie

1-50

1-3   days

20-200

2-5   days

200-500

2-10   days

500-1000

5-21   days

4G Two Way Radios

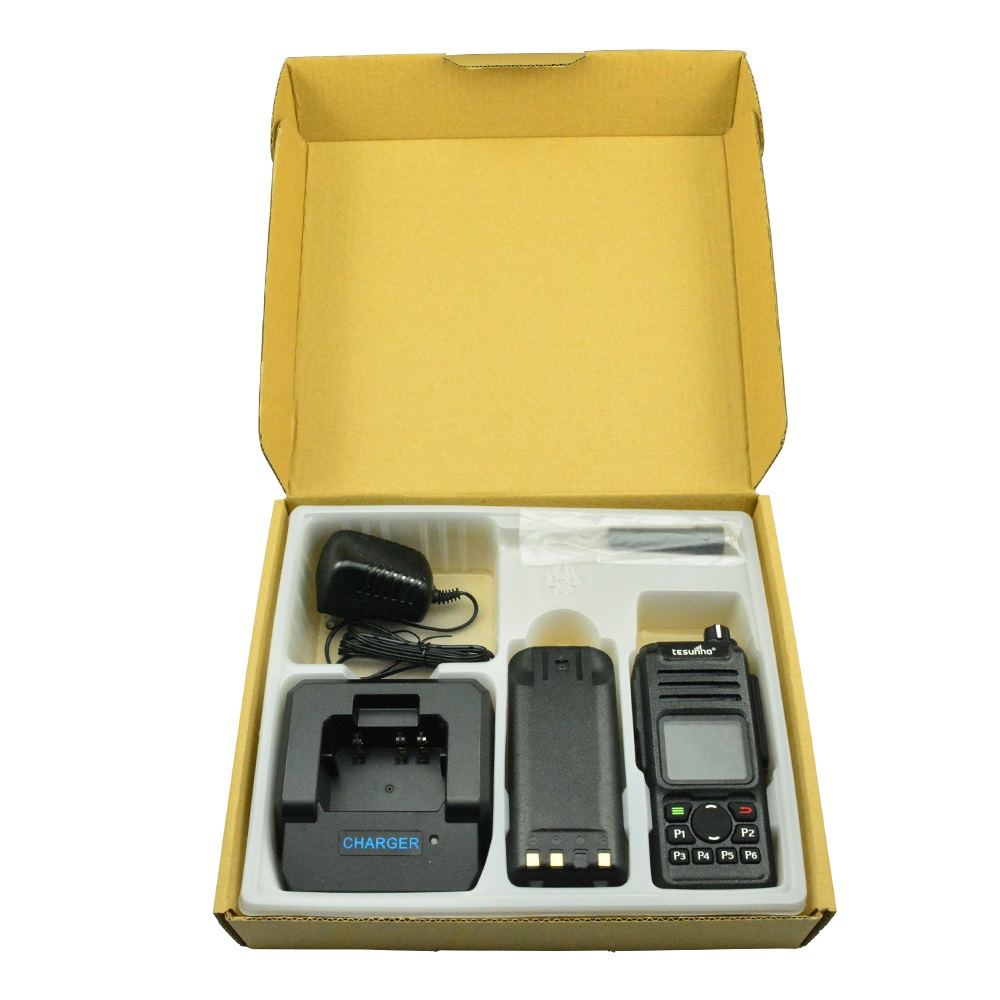

Standard Packing:package.jpg

Payment Method:

Trade Assurance  / Bank transfer / Western Union / MoneyGram / Paypal / L/C

Our Services:

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
