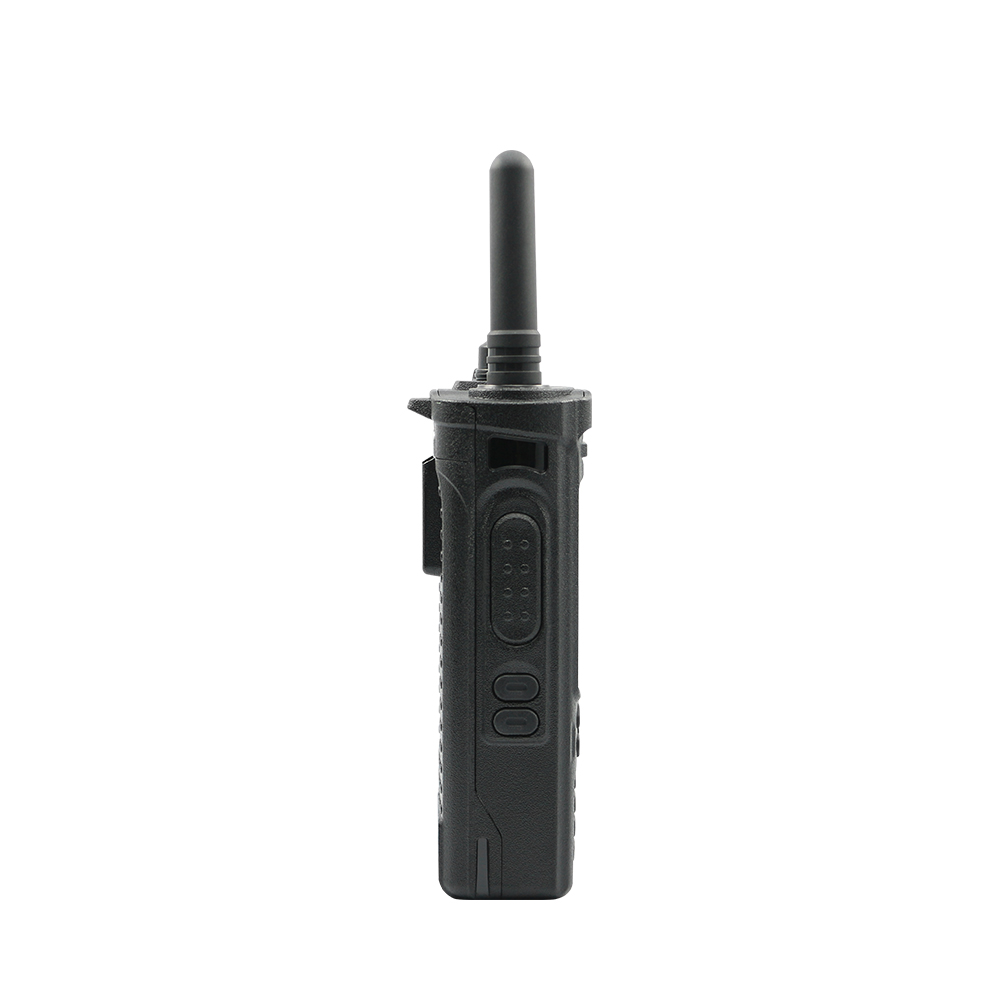

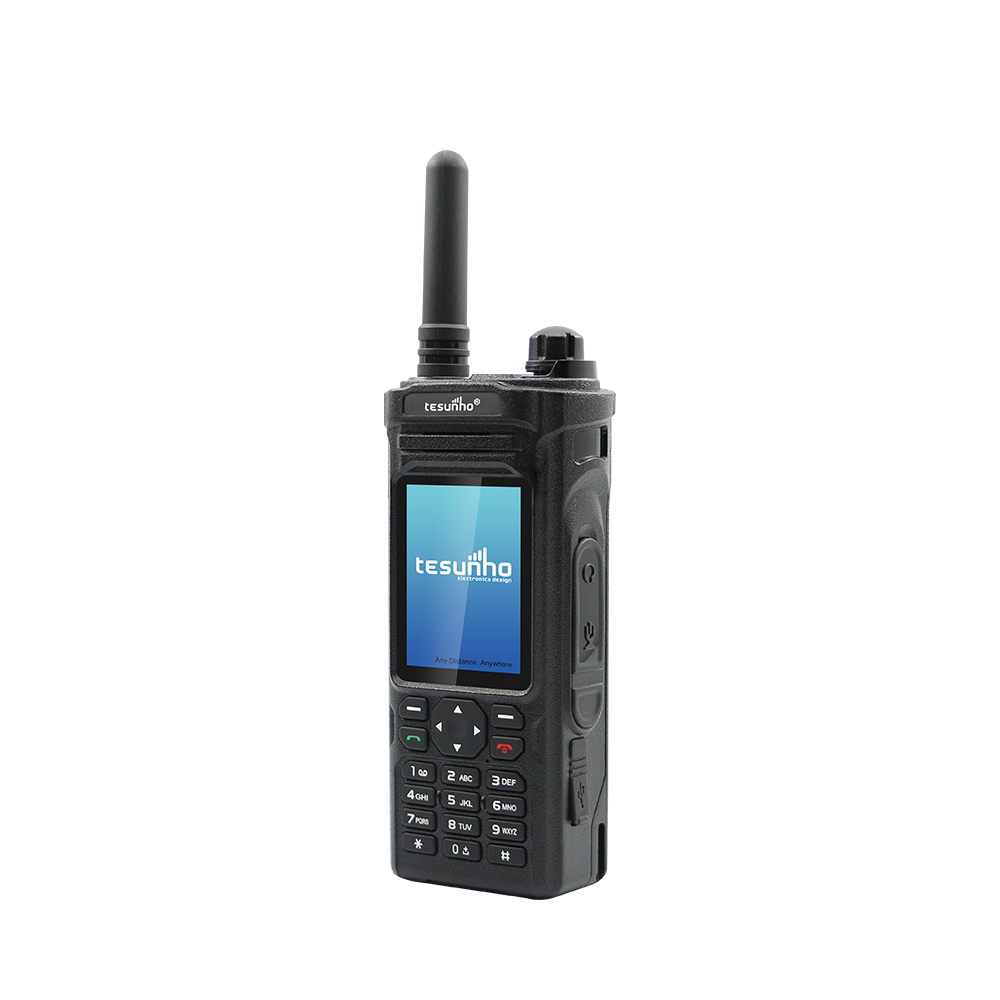

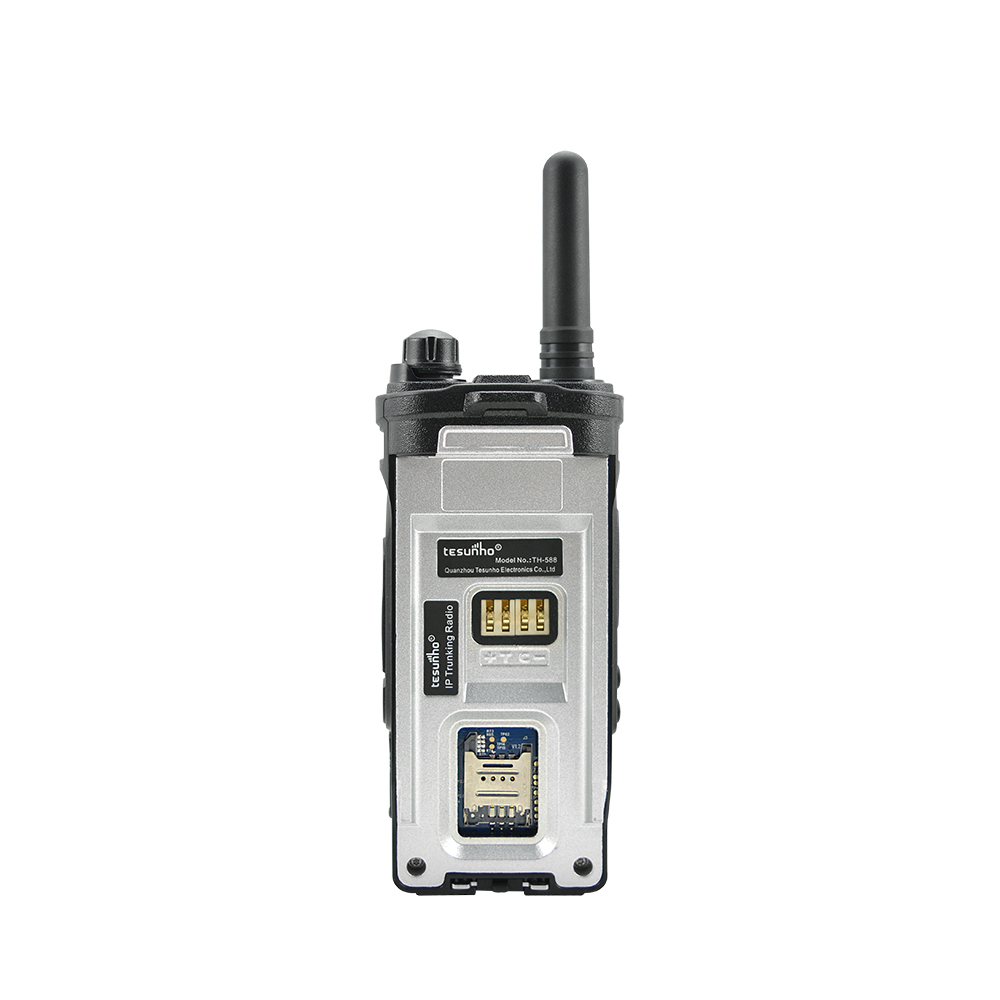

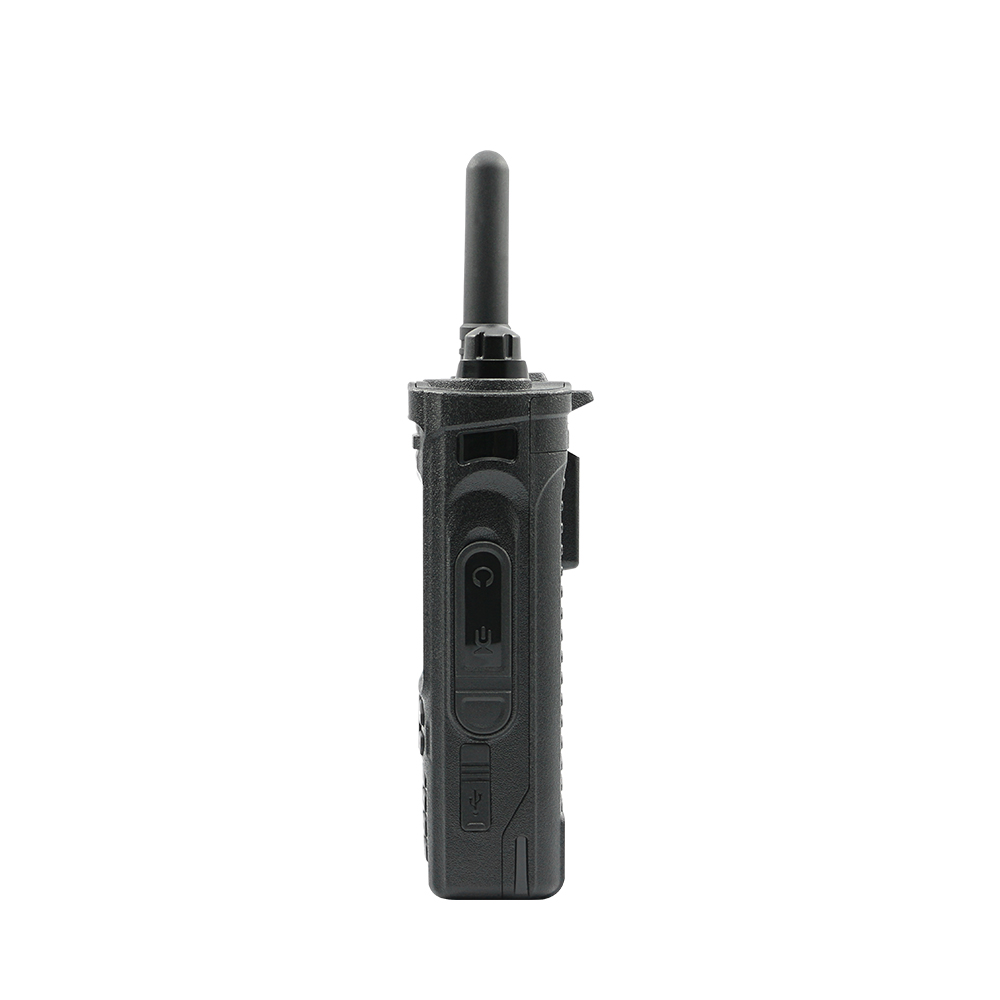

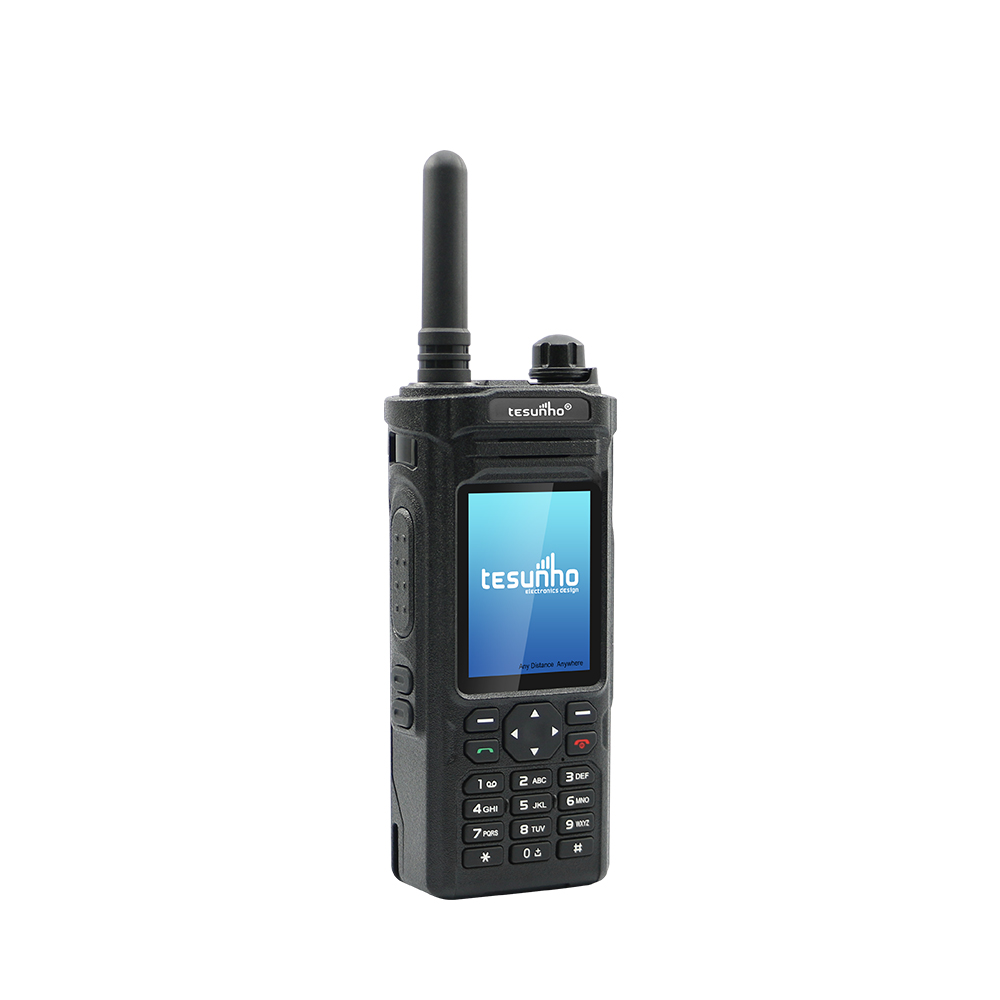

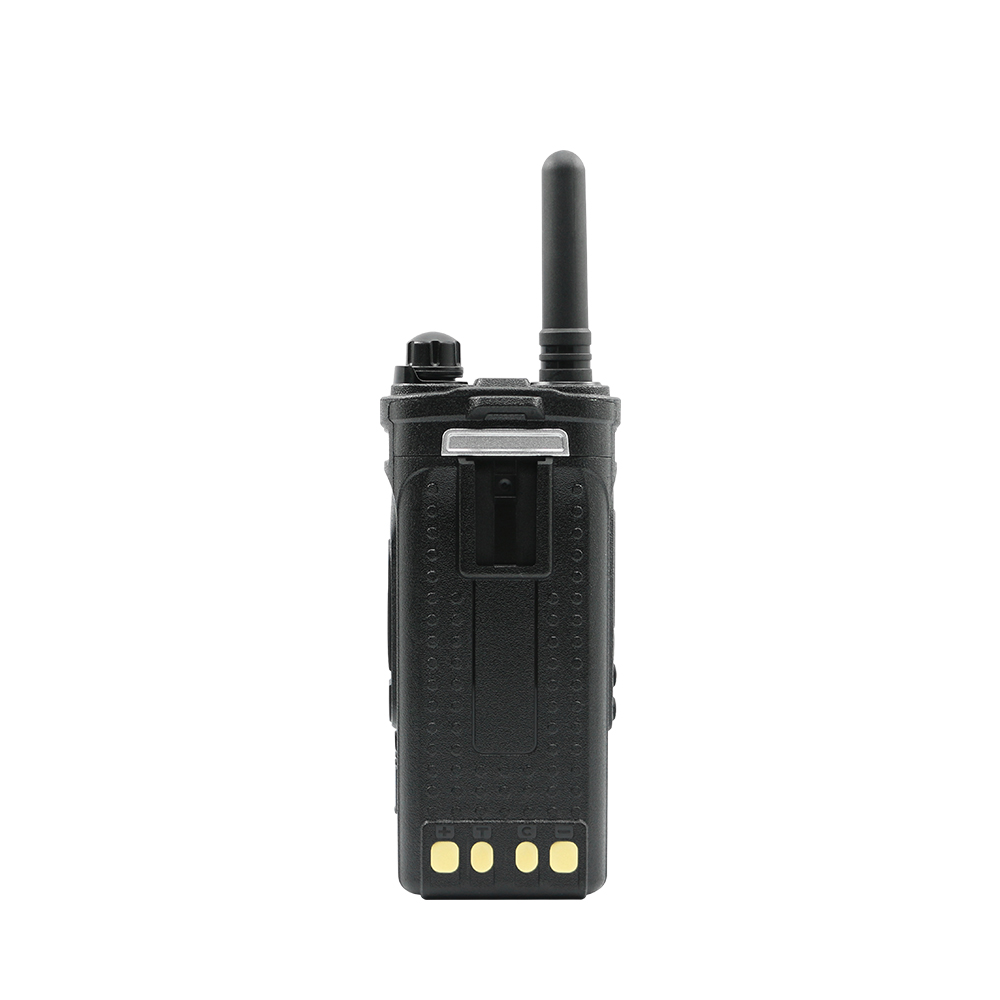

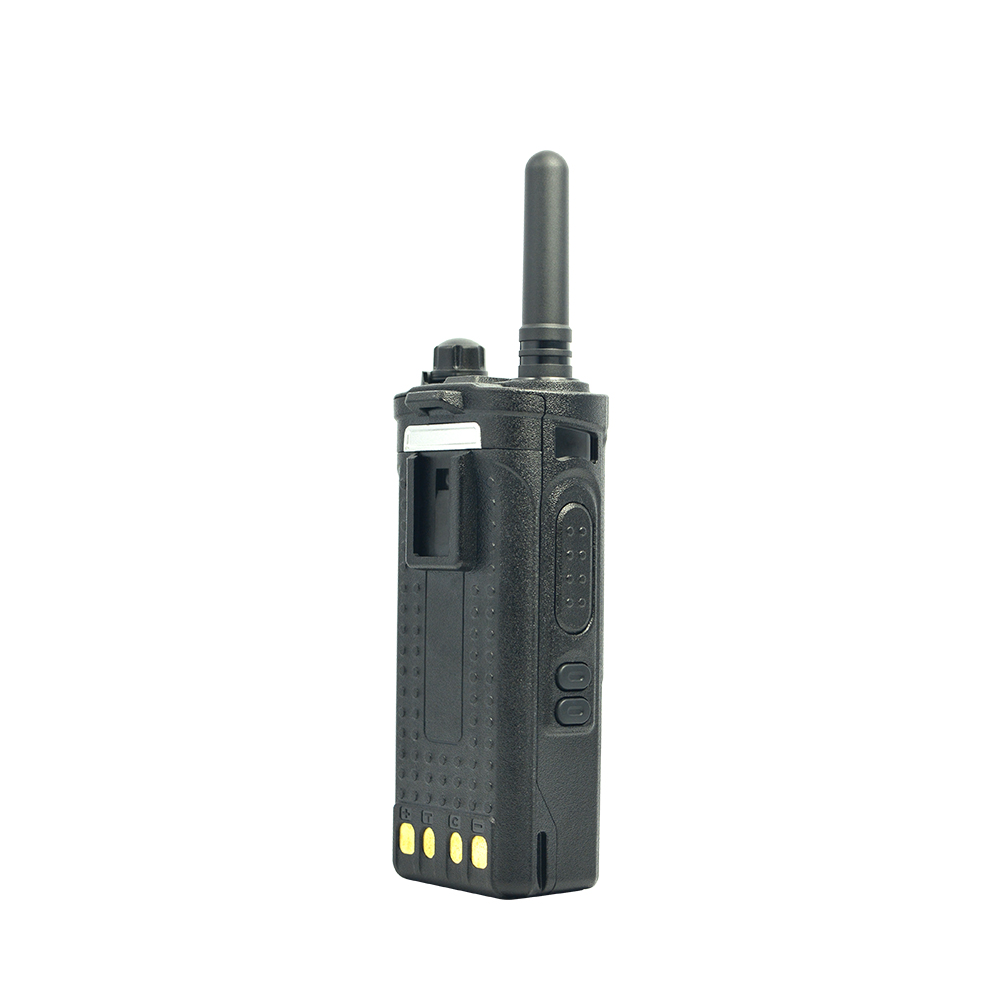

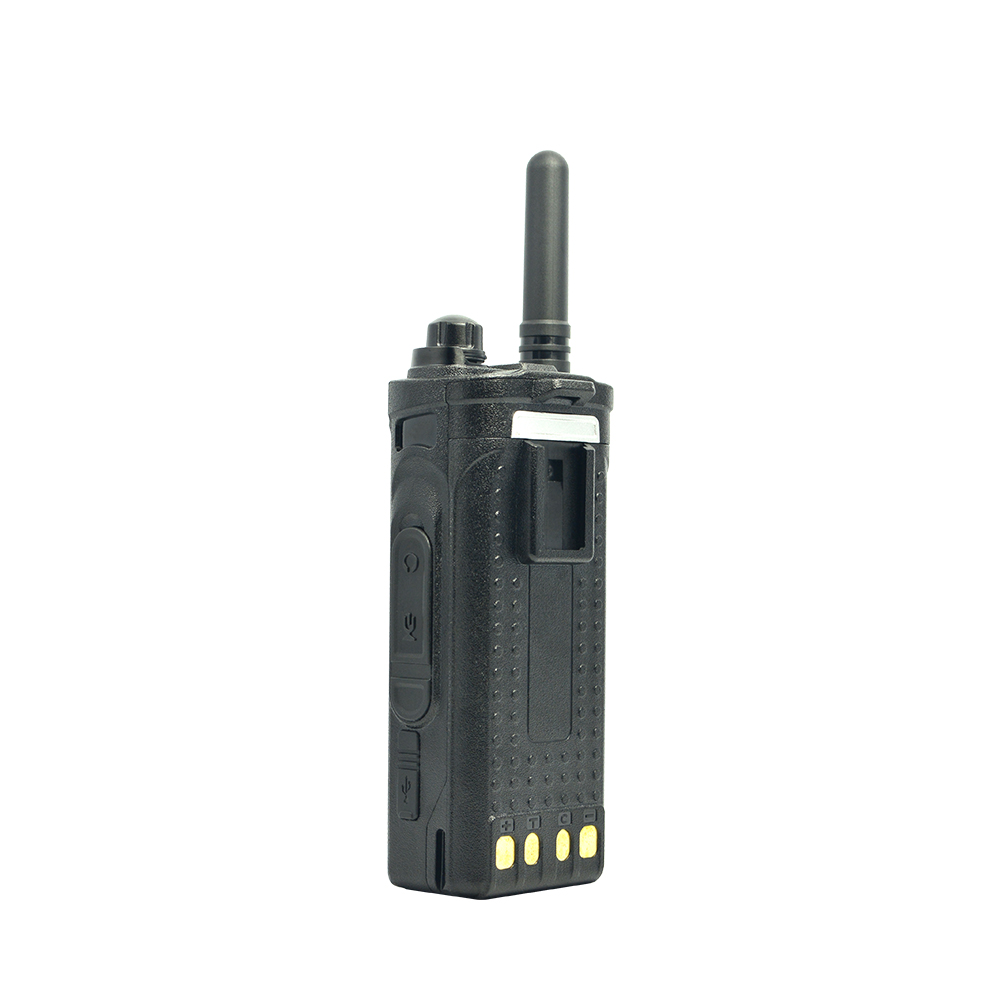

Tesunho TH-588 GPS Simcard Mobile Phone Radio
Main Features:
1. Mobile phone call
2. SMS
3. Bluetooth Built in
4. GPS Built in —— get the APRS information of the selected user
5. SOS ( ID Alarm)
6. Support 3G/2G WIFI
7. Support Group Call, Single Call, Selective Call Emergency Call
Mobile Phone Radio
Application:
Army, Government, Security, Indoor Use.
Airport, Railway, Construction, Industry, Commercial use, Rescue, Police，Outdoor adventure, Logistics，Taxi，Truck， Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.
Simcard Mobile Phone Radio
Specifications：
Quick Details | ||
Model No. | TH-588 | |
Weight(Body) | 329g | |
Size | 34(H)×60(W)×150(L)mm | |
LCD display | 2.4 240×128 Pixels | |
Battery capacity | 3.7V 4800mAh | |
Body Charging Port | Micro USB | |
Working Temperature | -30℃ to + 75℃ | |
Working Voltage | 3.3V ～ 4.2V (Standard 3.8V) | |
Working Current | 250mA @ WCDMA 220mA @ GSM | |
Audio Output | ＜0.8W | |
Frequency range | GSM 900/1800 MHz UMTS 900/2100MHz OR GSM 850/1900 MHz UMTS 850/1900MHz | |
Maximum Output Power | WCDMA: 24 +1/-3dBm (Power Class 3) GSM850/900: 33±2dBm(Power Class 4) GSM1800/1900: 30±2dBm(Power Class 1) | |
PoC OS | Android | |
GPS/APRS | GPS/APRS | |
LCD | 2.4 TFT | |
Languages | English / Spanish | |
Certificate | CE | |
Bluetooth | Bluetooth | Support V4.0,V3.0,V2.1 |
Maximum RF power | Class 1 ≤10dBm | |
Receiving Sensitivity | GFSK: ≤-95dBm,DQPSK: ≤-94dBm, DPSK: ≤-88dBm | |
WIFI | WIFI | IEEE 802.11 b/g/n,2.4G |
Maximum RF Power | ≤20dBm | |
Receiving Sensitivity | IEEE 802.11 g: ≤-65dBm | |
Data consumption | 2.88 Mega Byte per hour | |
Waterproof rate | IP54 | |
Group call | √ | |
Private call | √ | |
Friends call | √ | |
Emergency call | √(Panic button) | |
Phone Call | √ | |
Phone Call | √ | |
SIM Message | √ | |
Keypad | √ | |
SOS | √ | |
Secondary Development | √ | |
GPS Mobile Phone Radio

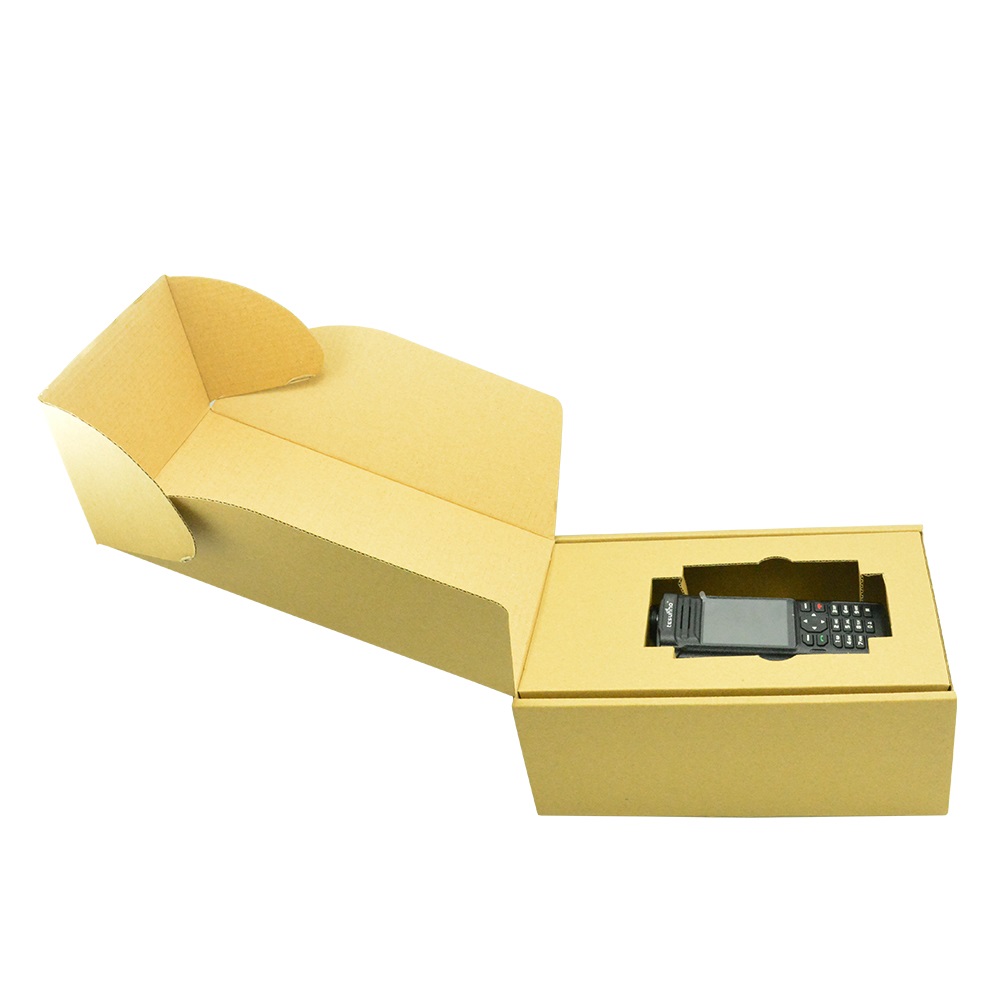

Packaging & Shipping :

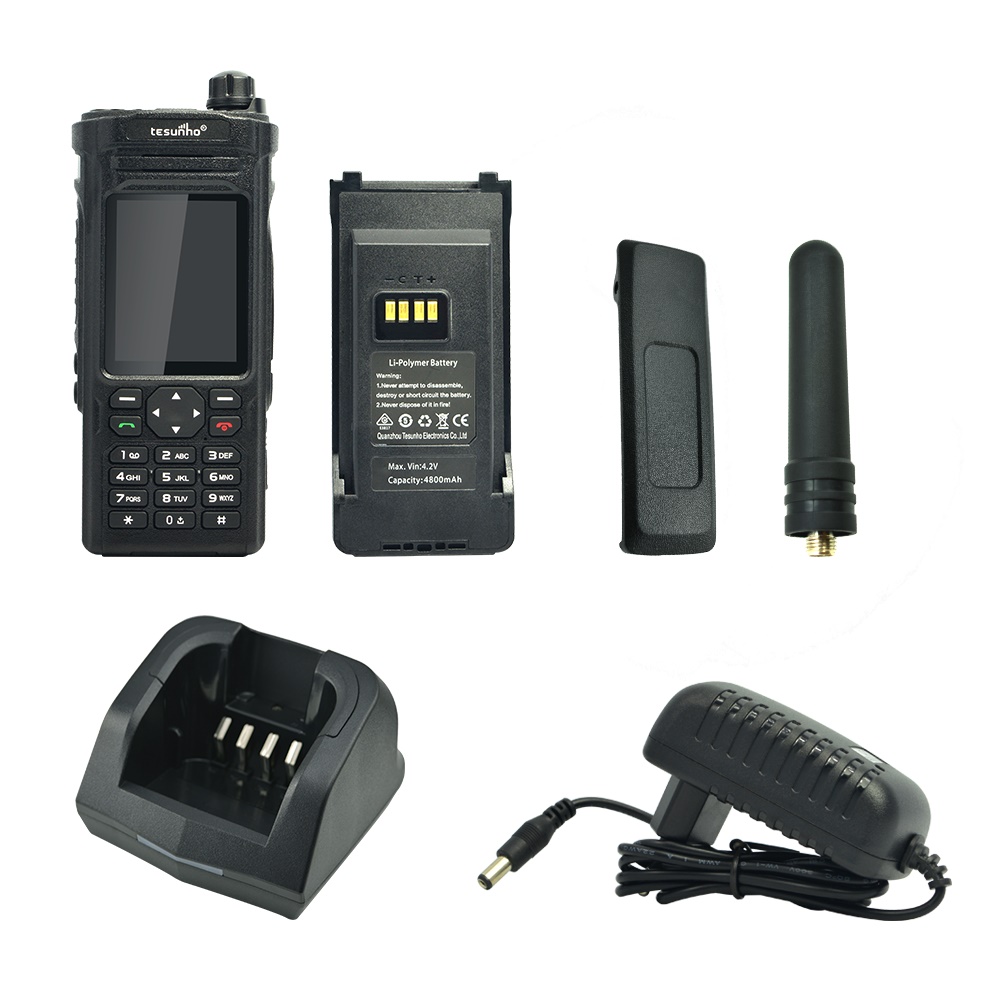

Standard Accessories:
Packing Details:
DIMENSION & WEIGHT | ||||||
Item | One Unit | Standard Carton |
Delivery Method | |||
Size(cm) | Gross Weight(kg) | Quantity(pcs) |
Size(cm) | Gross Weight(kg) | ||
TH588 |
23.5*16.0*9.5 |
0.72 |
20 |
49*49*36 |
15.9 |
DHL/FedEx/TNT/EMS/By Air/By sea |
Lead Time
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
20-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Certifications:
Trade Assurance / Bank transfer / Western Union / MoneyGram / Paypal / L/C
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
√ partly OEM service
√ complete OEM service
√ partly OEM service
√ complete OEM service
We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
