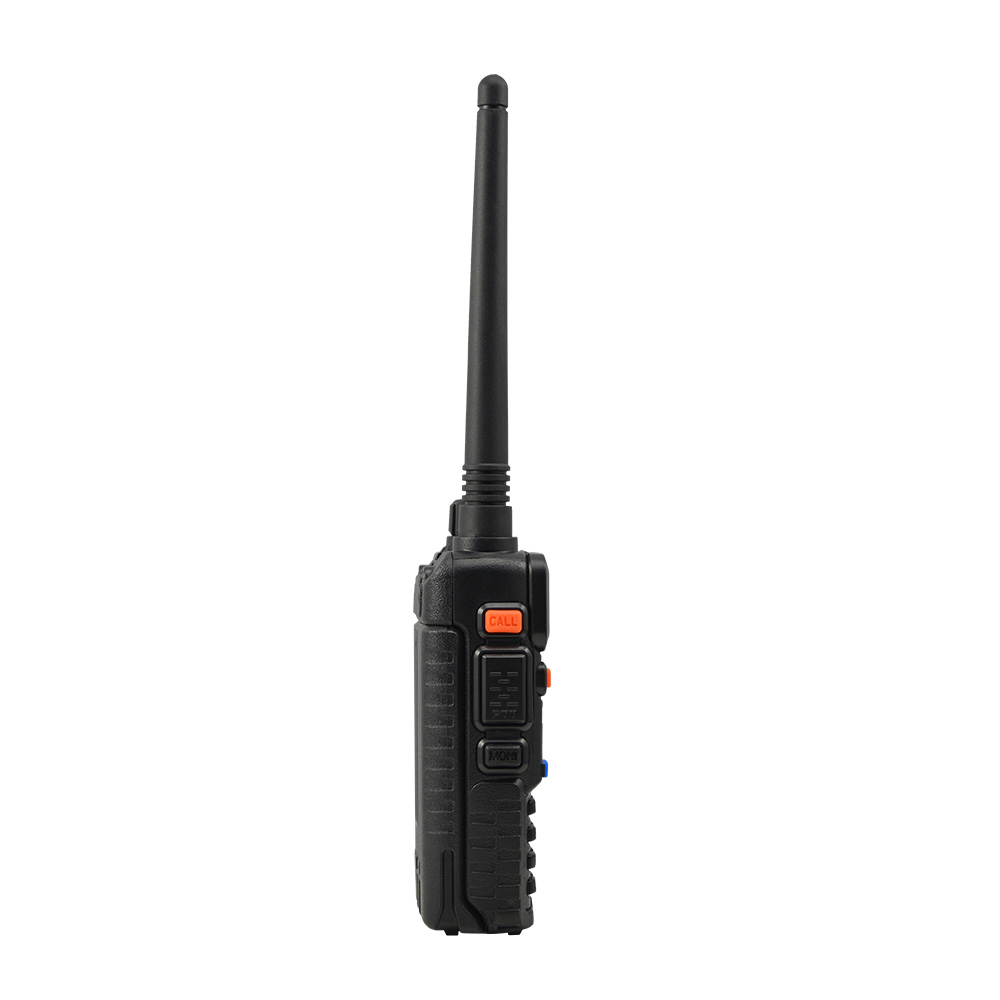

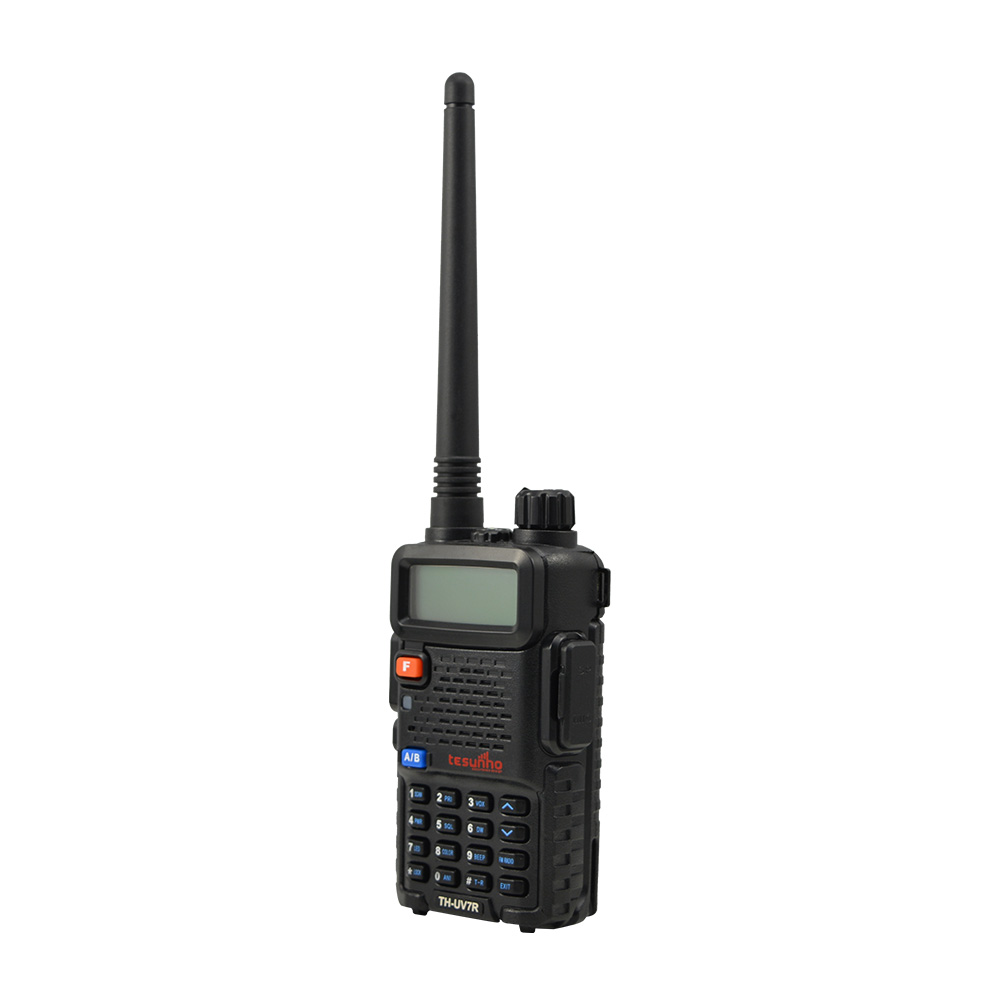

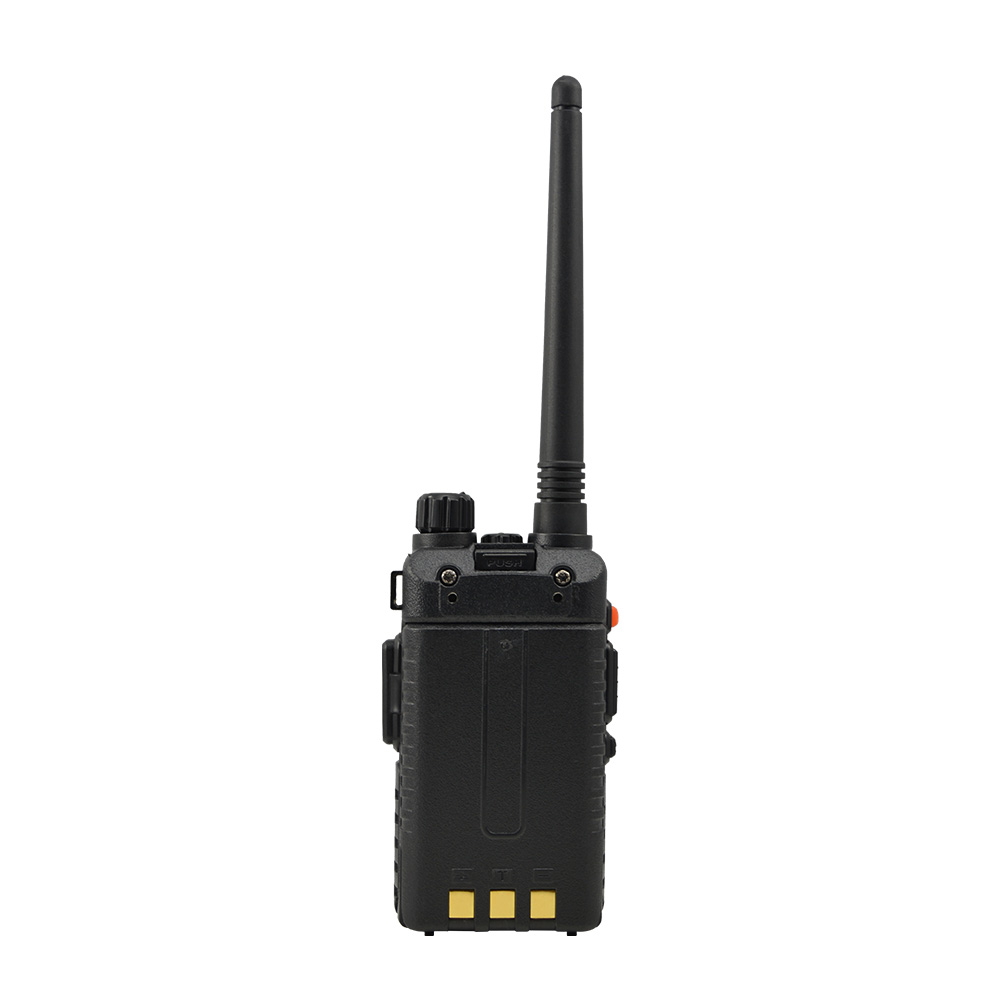

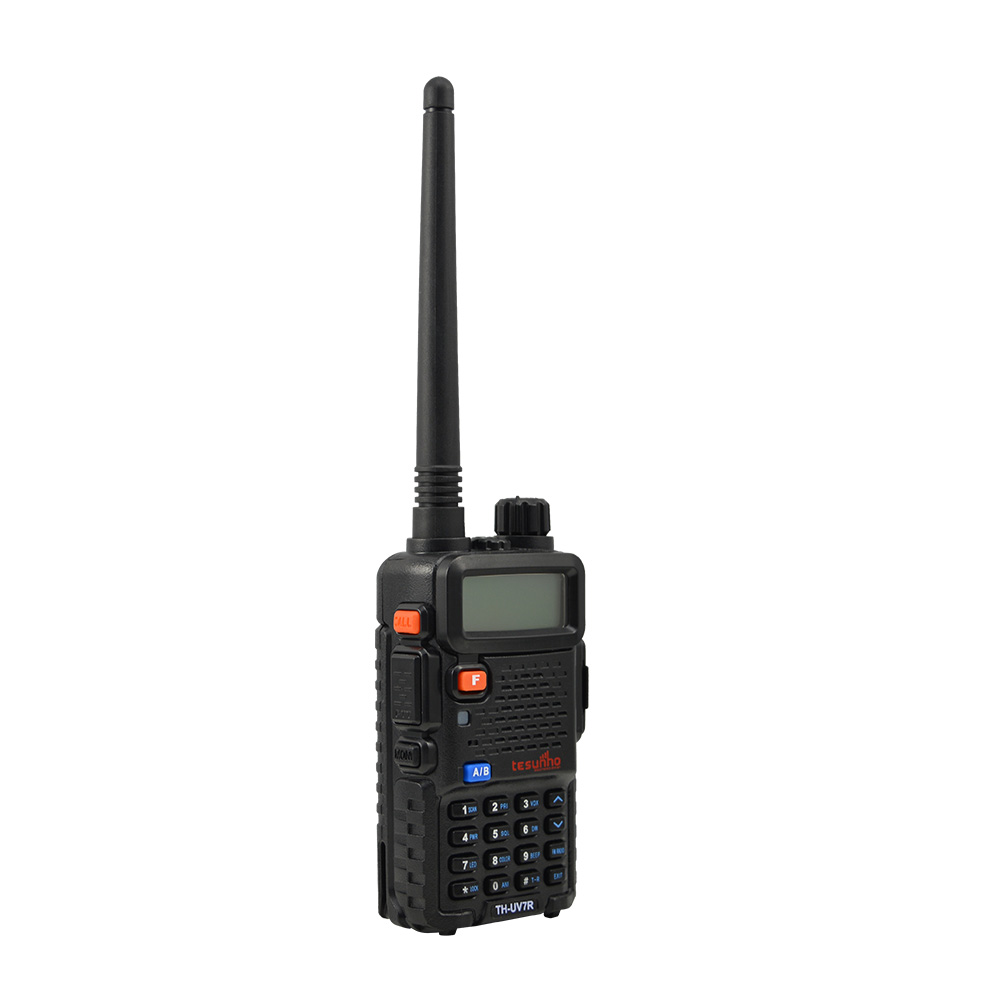

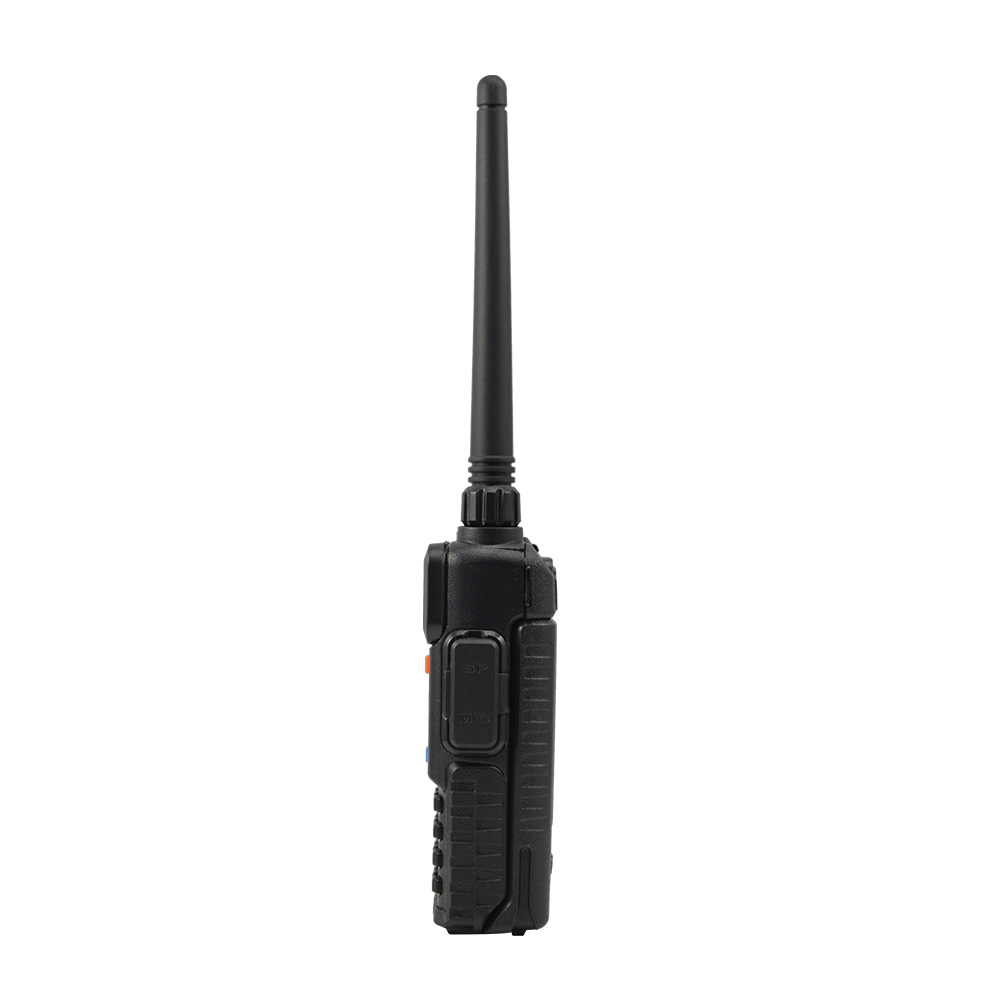

TH-UV7R is high quality analog transceiver with the competitive price.
1.Dual Band,Dual Display,Dual Standby
2.Mini & Deft Appearance
3.VOX Operation
4. Color Optional: Black, camouflage, red, sandy,orange, green....
Main Features:
TH-UV7R is high quality analog transceiver with the competitive price.
1.Dual Band,Dual Display,Dual Standby
2.Mini & Deft Appearance
3.VOX Operation
4. Color Optional: Black, camouflage, red, sandy, orange, green.
5. 128 Channels
Application:
Unique for: Hunting, Farm, Airsoft, family, ham club
Main Function:
Channel Scan
Specifications:
| Item number | TH-UV7R |
| General | |
| Frequency Range | 70-108MHz(FM Receive only) 136-174MHz 245-246MHz 400-520MHz |
| Channel No. | 128*2 |
| Frequency Stability | ±2.5ppm |
| Antenna | High gain antenna |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 7.2V |
| Mode of operation | Simple or semi-duplex |
| Dimension(W x H x D) | 100 x 52 x 32 mm |
| Weight | 250g(including battery, antenna) |
| Transmitter | |
| Output power | ≥4W(H) ≥0.5W(L) |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | <5kHz(Wide) / <2.5kHz(Narrow) |
| Spurious Radiation | <7μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics | 6dB |
| Current | ≤1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | <10% |
| Receiver | |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio power | ≥0.5W |
| Audio Distortion | ≤10% |
| Intermediation | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Selectivity | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Spurious Rejection | ≤-65dB |
| Blocking | ≥85dBuv/m |
More parameters, please contact with us!
Packaging & Shipping
F VHF Radio
Standard Package for one piece:
Lead Time：
Item | Quantity(pcs) | Production Lead Time |
Walkie talkie | 1-50 | 1-3 days |
20-200 | 2-5 days | |
200-500 | 2-10 days | |
500-1000 | 5-21 days |
Certifications:
Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
√ partly OEM service
√ complete OEM service
√ partly OEM service
√ complete OEM service
We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different task workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment
