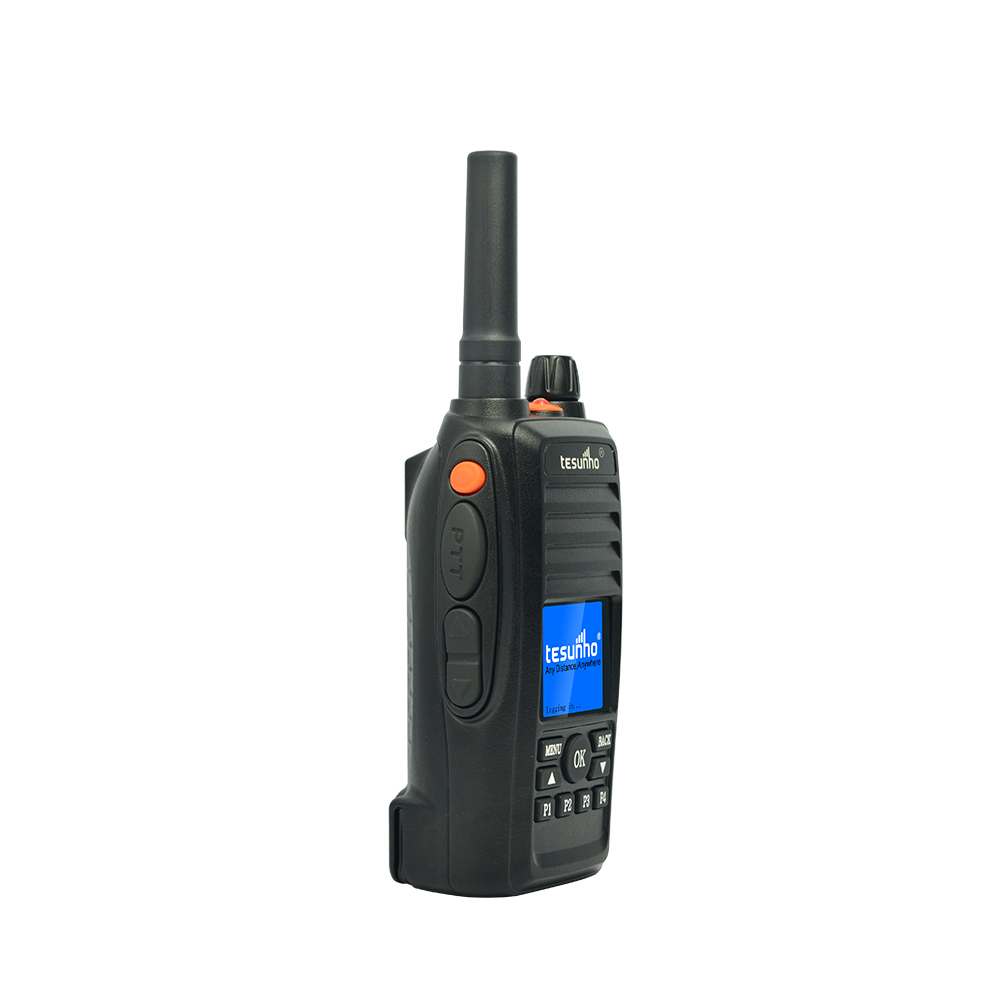

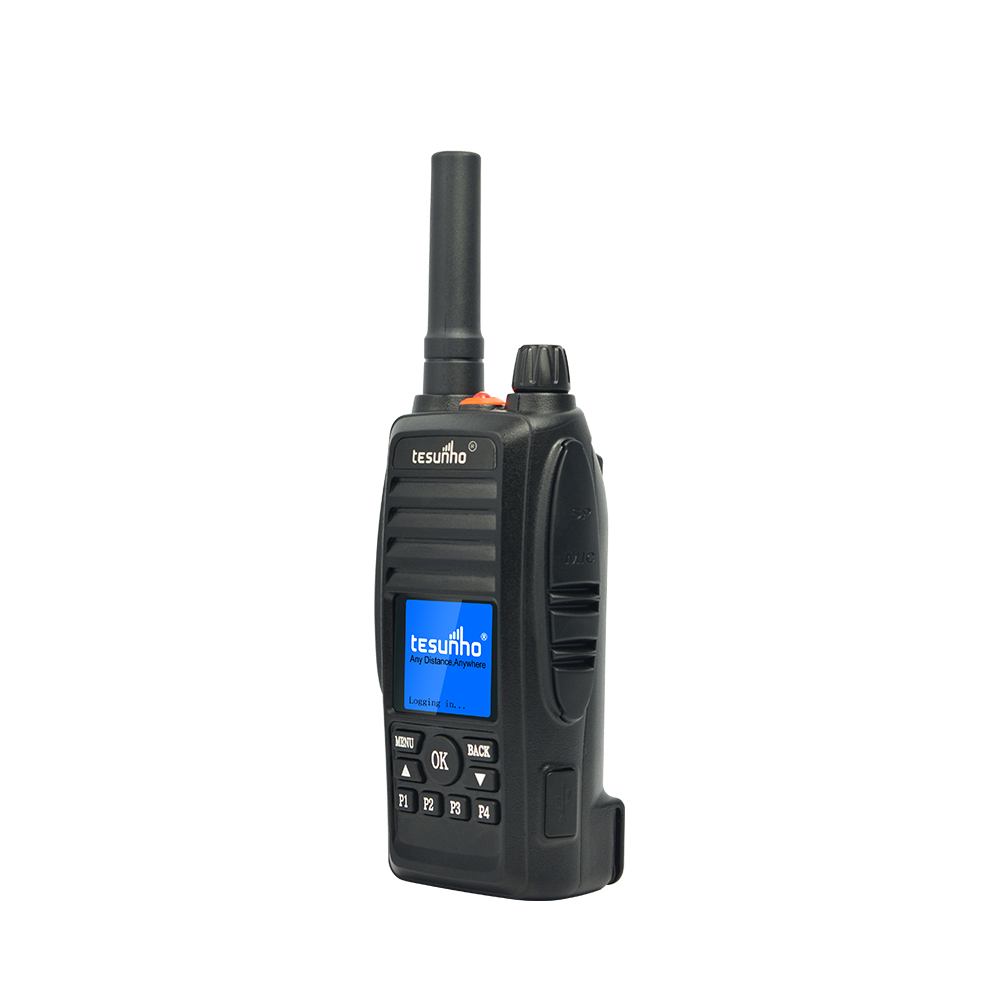

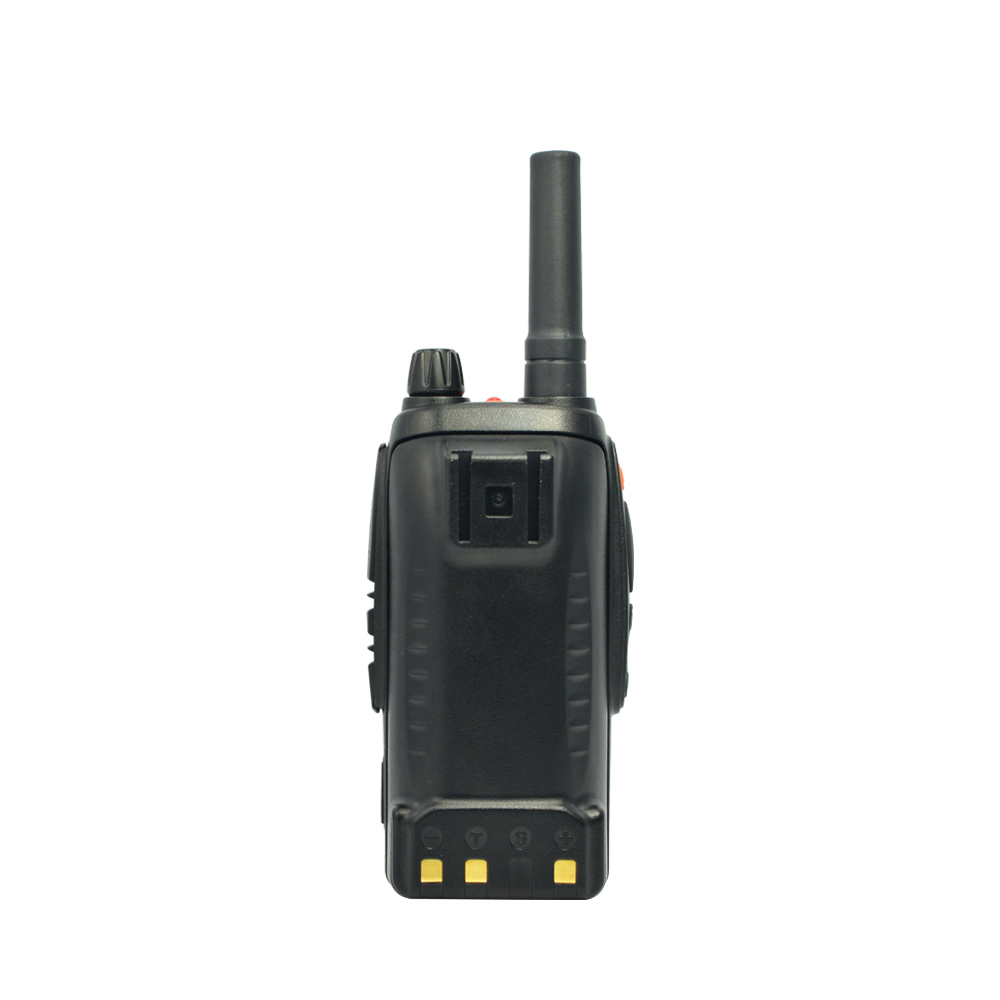

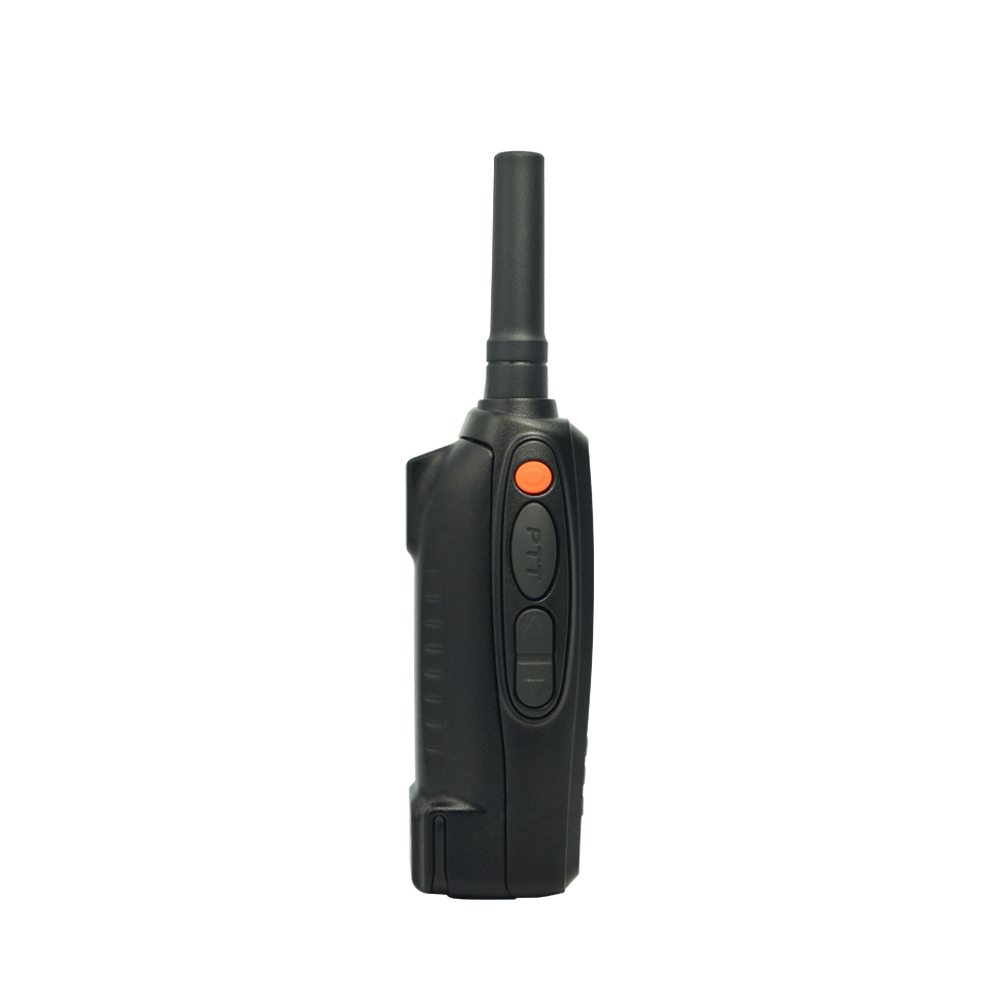

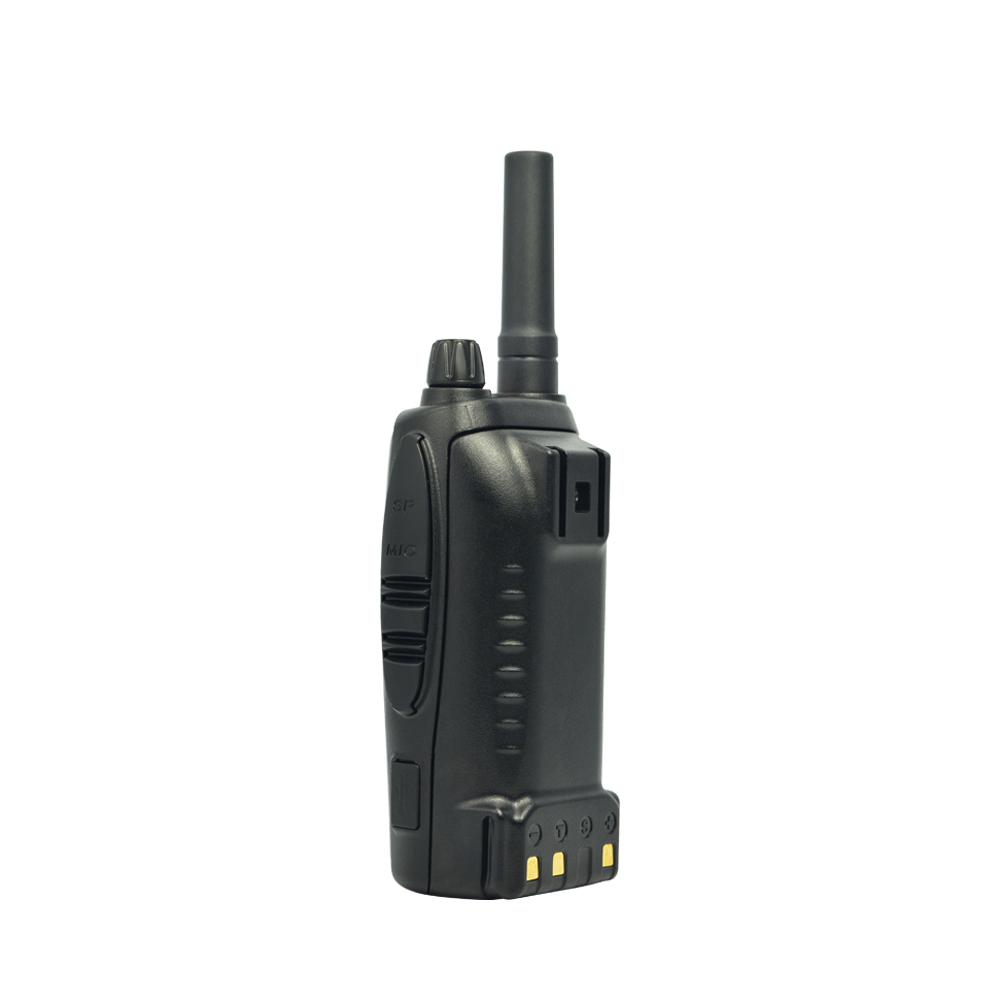

Group Call IP Radio Unlimited Distance TH-388

TH-388 is a powerful 2way radio, popular in professional applications. Real-time positioning to realize timely reinforcement/rescue for any emergency situations.

Send Inquiry


Main Features:

1. SOS & APRS(Emergency button)

2. GPS Function

3. Display the users/calling/last caller information

4. Can receive dispatcher message

5. Support 4G/3G/2G M network

6. Support Group Call, P2P Call, Quick Call, Emergency Call

7. Large Capacity (3.63V 5200mAh)

8. Quick charger – 3 hours fully charged



Application:

Security, Airport, Railway, PoliceRescue

Commercial use Construction, Industry, Army, Government, Outdoor adventure, Logistics, Taxi, Truck, Camping, Travelling, Big shopping mall, Big Hotel, Outdoor Events, etc.



Specifications

Type

Parameter Item

Specification



Mechanical Properties

Model No.

TM-388

Dimension

40(H)×60(W)×127(L)mm

Weight

266g

Working Temperature

-30 to + 75



Basic Parameter

Working Voltage

DC 3.63V



Working Current

[email protected] 2100/900

[email protected] 900

Peak Current

2A













RF Parameter

LTE FDD

(Have multiple versions of LTE Bands for different countries)

Band1: 2100MHz   Band3: 1800MHz      Band7: 2600MHz   Band8: 900MHz      Band20: 800MHz



WCDMA

Band1 : 2100MHz       Band2 : 1900MHz

OR

Band8:  900MHz       Band5:  850MHz

GSM

GSM/GPRS : 900/1800 MHz OR





Maximum

Output power

WCMDA 900/2100MHz : Power Class 3

(+ 24 dBm + 2.5dBm / -1.5 dBm);

GSM/GPRS 850/900 MHz : Power Class 4

(+ 33 dBm + 2.5dBm / -0.5 dBm);

GSM/GPRS 1800/1900 MHz : Power Class 1

(+ 30 dBm + 2.5dBm / -0.5 dBm);



Receiving Sensitivity

WCDMA900: ≤ -108dBm;

WCDMA2100: ≤ -109dBm;

GSM 850/900/1800/1900 : ≤ -106dBm



GPS

GPS

GPS Positioning,1.57542GHz

Sensitivity

Catch -144dBm, Track -159dBm





Technology Standard





Data Speed Rate

GSM CS : UL 9.6 Kbps / DL 9.6 Kbps

GPRS: Multi-slot class 10

EDGE: Multi-slot class 12

WCDMA CS : UL 64 Kbps / DL 64 Kbps

WCDMA PS : UL 384 Kbps / DL 384 Kbps

Protocol

HSDPA / WCDMA / EDGE / GPRS / GSM


Battery Capacity

3.63V 5200mAh


Body Charging Port

Micro USB


Audio Output

0.8W


PoC OS

Linux


GPS/APRS

GPS/APRS


LCD

1.44 TFT


Languages

English/Spanish


Certificate

CE/FCC

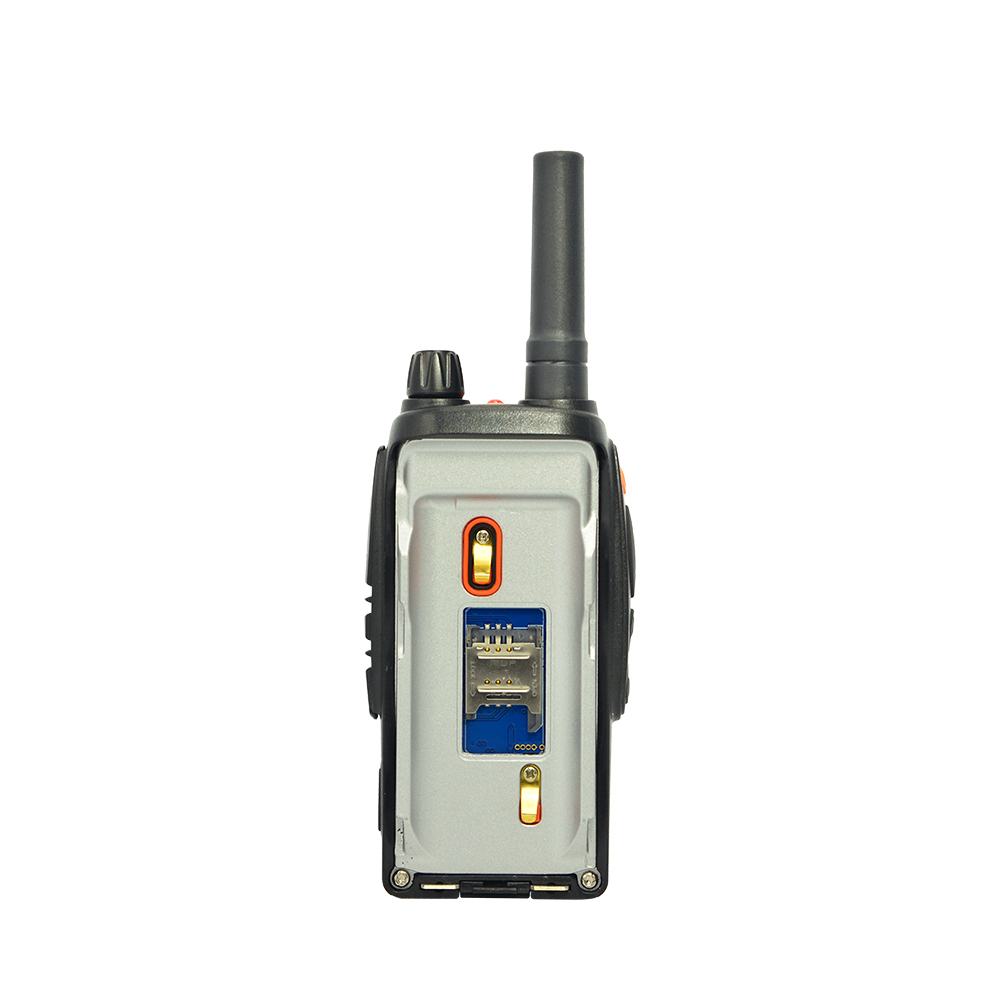

Dual SIM

Optional


Phone Call


Dispatcher Message


SOS


Keypad


PTT Records


Monitor


Secondary Development

 Group Call IP Radio

To see real product, please go to video link below:

https://youtu.be/xJVIjcvUT0o



Packaging & Shipping :

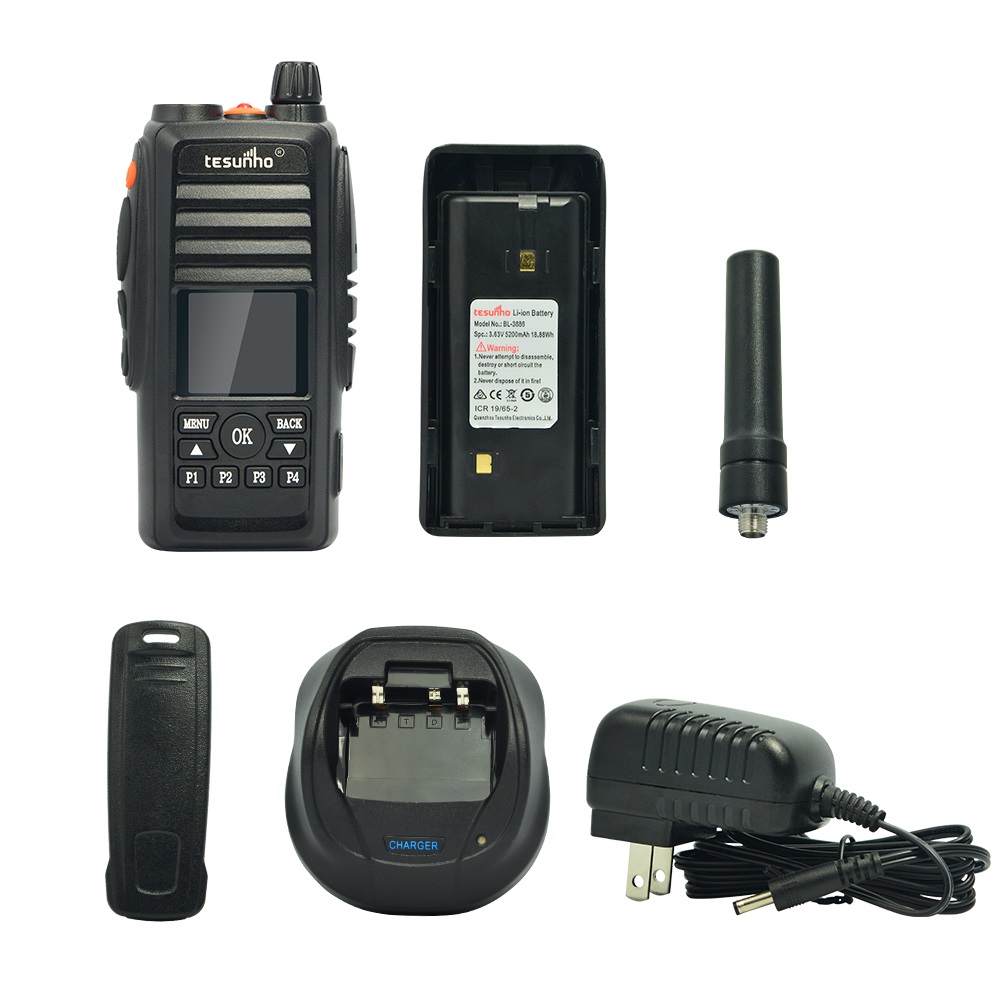

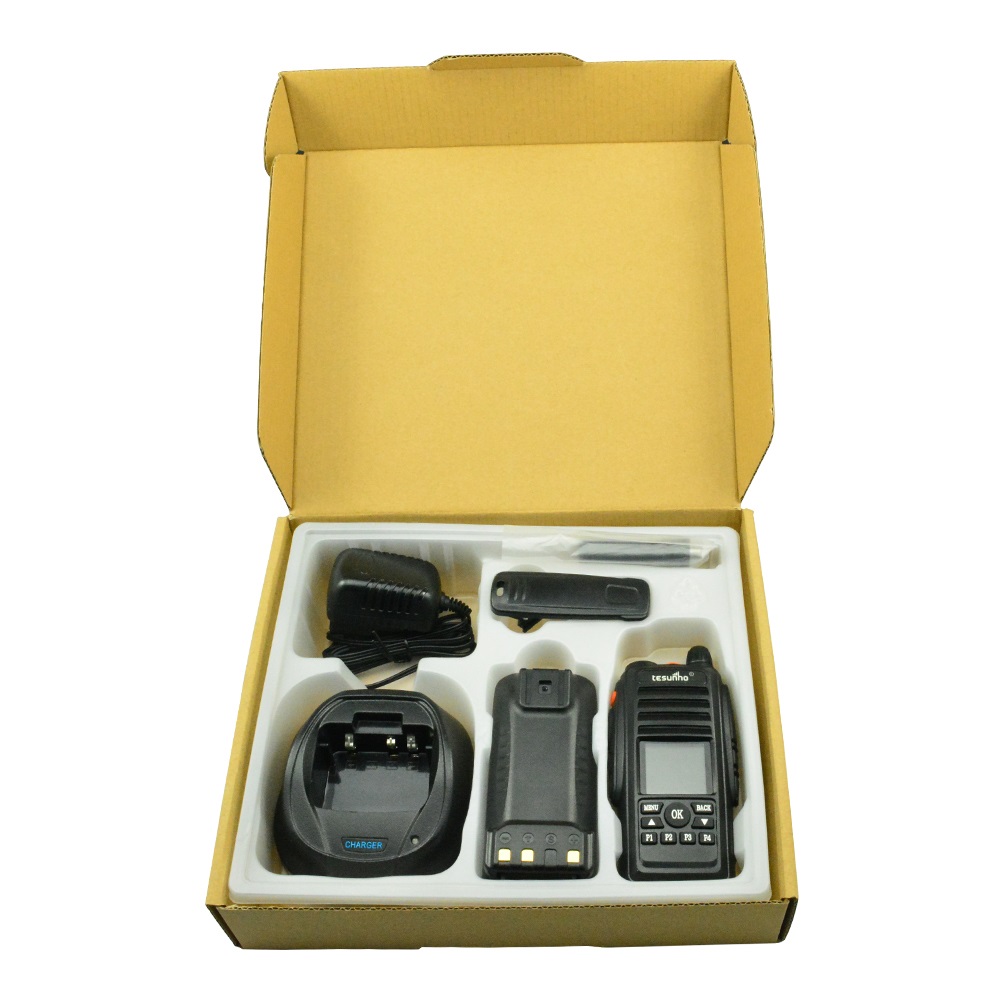

Standard Accessories:


Packing Details:

DIMENSION & WEIGHT

Item

One Unit

Standard Carton





Delivery Method



Size(cm)

Gross Weight(kg)

Quantity(pcs)



Size(cm)

Gross Weight(kg)







TH388







21.5*25*5.5



0.58



20



58*46*30



12.8



DHL/FedEx/TNT/EMS/By Air/By sea



19*24.5*6.5



0.6



20



67*40*29



13.5



DHL/FedEx/TNT/EMS/By Air/By sea

Lead  Time

Item

Quantity(pcs)

Production   Lead Time



Walkie   talkie

1-50

1-3   days

20-200

2-5   days

200-500

2-10   days

500-1000

5-21   days

 Unlimited Distance IP Radio


Standard Packing:package.jpg

Payment Method:

Trade Assurance / Bank transfer/ Western Union/ MoneyGram/ Paypal/ L/C

Our Services:

Tesunho is aim to be the leading industrial walkie talkie solution supplier. So our service consists of 3 important parts:

1. Basic Warranty:

√ Replacement: Free new walkie talkie if it can not work at once it arrives.

√ Free maintenance and parts (without artificial faulty ) :

Item

Warranty

Main Unit

365 days

Battery and Charger

90 days

Antenna and other parts

None

√ Paid maintenance and parts: for artificial faulty

2. Brand OEM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

√ partly OEM service

√ complete OEM service

3. Technical ODM service:

We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system

FAQ:

1.How POC Radio work?
A: It needed poc radio, sim card and real ptt account, contact us for more explaining
2.How to program radio?
A: It need real ptt account, real ptt account password, URL, Apn. Pls feel free to contact us, we will offer you programming instruction and guide one by one step.
3.What is your MOQ?
A: 2 piece for normal stock; different quantities for OEM or ODM,which is determined by different  task  workload. Kindly contact us for more information.
4.What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
